bentonite grouting mixer machine

Brief Introduction

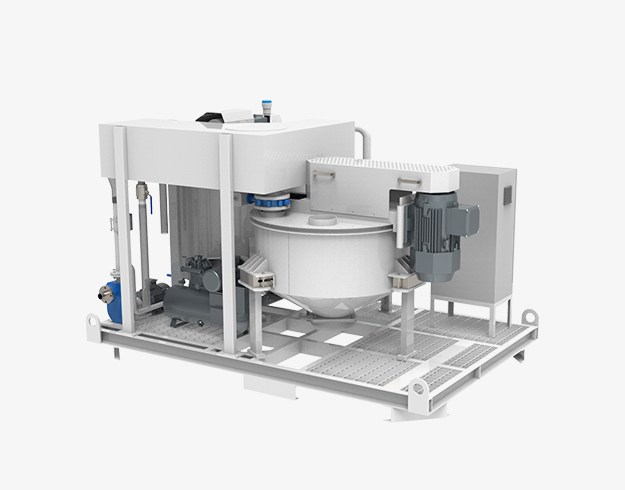

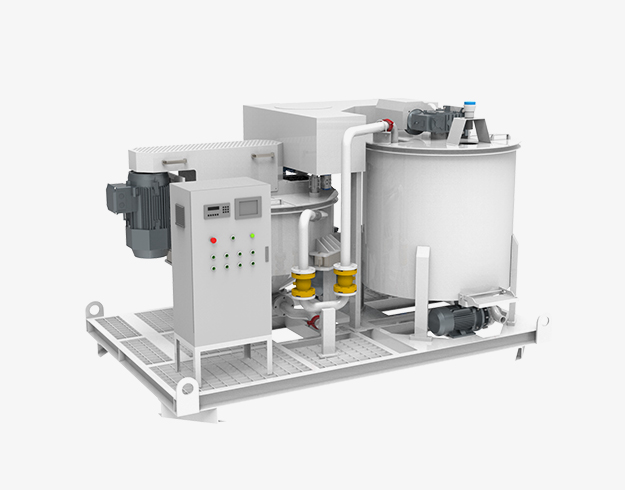

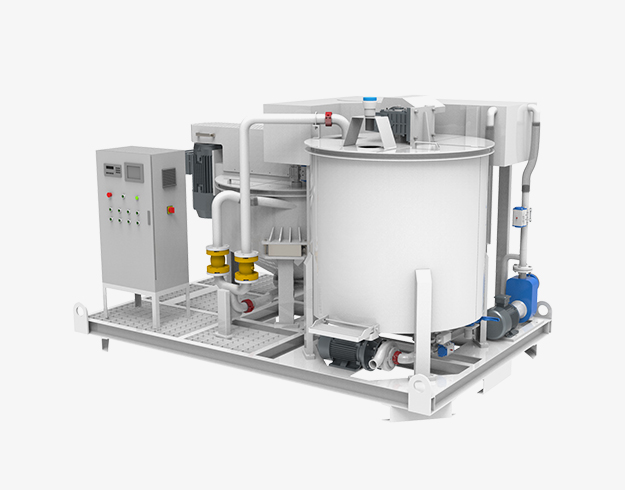

Introduction of HWMA850-1500A/E Bentonite Grouting Mixer Machine

HWMA850-1500A/E bentonite grouting mixer machine is primarily used to prepare mixtures such as cement slurry and is widely used in above-ground and underground engineering projects, including highways, railways, hydropower, construction, and mining operations.

Features

Features of HWMA850-1500A/E Bentonite Grouting Mixer Machine

HWMA850-1500A/E Bentonite Grouting Mixer Machine

Compact structure

Simple operation and easy maintenance

Less spare parts ensure low maintenance costs

HWMA850-1500A/E Bentonite Grouting Mixer Machine

High speed vortex mixer ensures mixing quickly and evenly

The proportion of materials in the formula can be adjusted freely

It is equipped with an automatic pulping function

Parameters

Parameters of HWMA850-1500A/E Bentonite Grouting Mixer Machine

Name		Data
Model		HWMA850-1500A/E
Mixer	Capacity	850L
	W/C ratio	0.5~1
	Rate Rev.	1800rpm
	Power	18.5Kw
	Production capacity	10m3/h
	Max pump flow rate	1200L/min@3bar
Agitator	Capacity	1500L
	Rate Rev.	39rpm
	Power	3Kw
Booster pump	Flow	700L/min
	Pressure	1Bar
	Power	3KW
Power requirements		Voltage 3 Phase 380V, 50Hz
Dimension		3350×2160×2130mm
Weight		2600Kg
We can also customize products according to your needs.

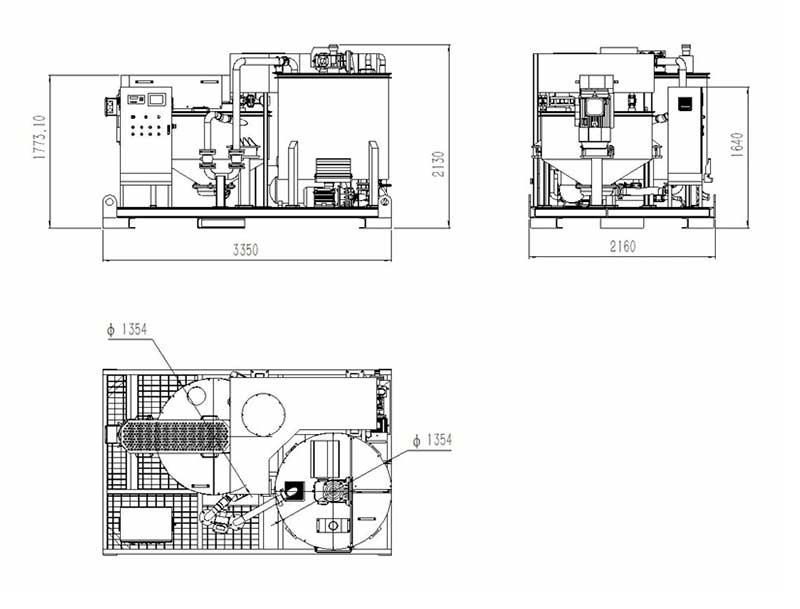

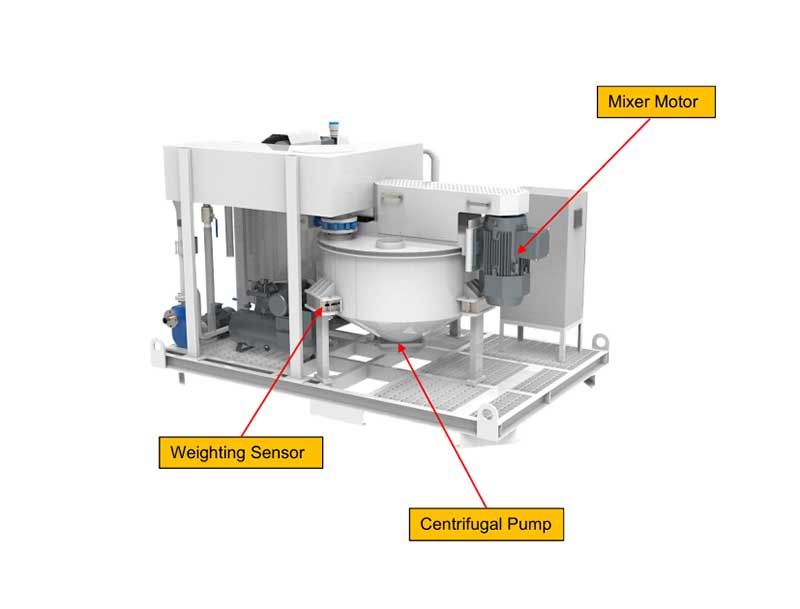

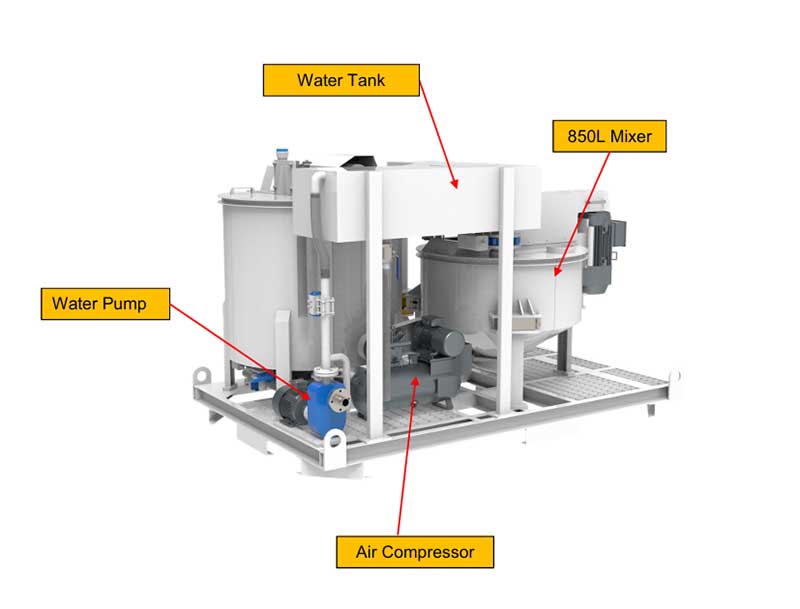

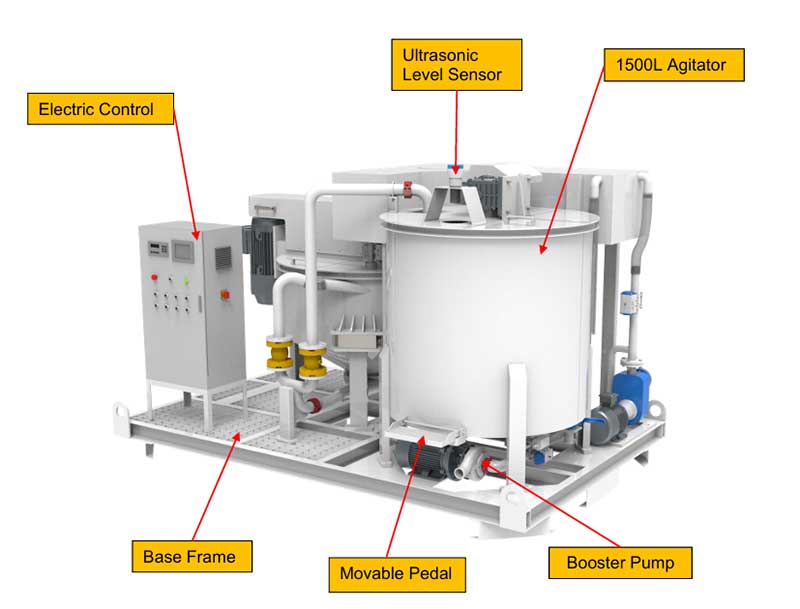

Detail Part

Detail Part of HWMA850-1500A/E Bentonite Grouting Mixer Machine

Application

Application of HWMA850-1500A/E Bentonite Grouting Mixer Machine

HWMA850-1500A/E Bentonite Grouting Mixer Machine is a versatile and compact grouting equipment. This combination enables an efficient and continuous grouting process.The grout injection plant is widely used in mines, tunnels, culverts, subways, hydropower projects, underground projects, etc.

Grouting Construction In Deep Foundation Pits, Tunnels, Mines, Water Conservancy Projects And Buildings

Whether in ground reinforcement or underground excavation projects, our full range of jet grouting plant is committed to providing cutting-edge technology and excellent support to ensure our customers can efficiently achieve their project goals.

Colloidal Grout Mixing Plant for Tunneling & Mining

The colloidal grout mixing plant for tunneling & mining engineering has successfully solved the complex geological grouting problem in the slope reinforcement project of Australian mining enterprises by virtue of high shear mixing and other core technologies.

Packaging

Packaging Display
