Compact Automatic Grout Plant

Brief Introduction

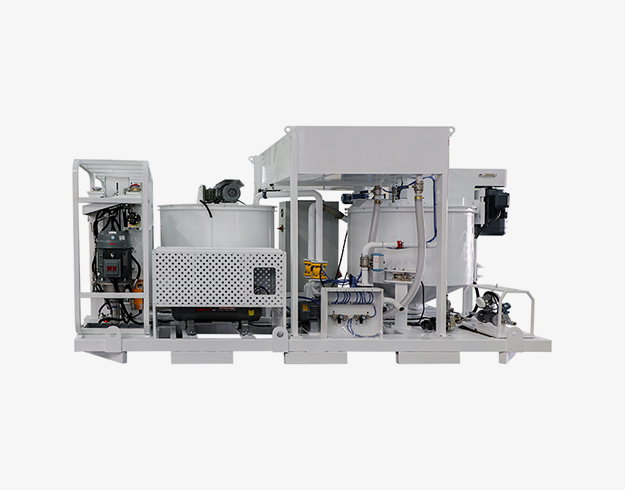

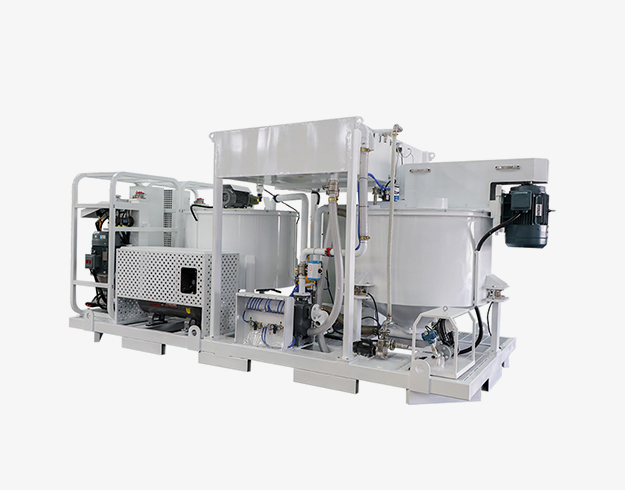

Introduction of HWGP1200/1200/2X75/100PL-E Compact Automatic Grout Plant

HWGP1200/1200/2X75/100PL-E Compact automatic grout plant integrates a mixer, circulation pump, and grouting pump into a single unit. Once the grout is prepared, it can be directly transferred to the grouting pump, ensuring continuous mixing and grouting operations. It is primarily used for the preparation of materials such as cement grout and is widely applicable to various above-ground and underground engineering projects, including highways, railways, hydropower, construction, and mining.

Features

Features of HWGP1200/1200/2X75/100PL-E Compact Automatic Grout Plant

Compact Automatic Grout Plant

1200L Mixer: Three weighing units ensure precise material feeding; high-speed colloidal mixing; auxiliary impellers provide three-dimensional mixing; pneumatic valves on the main pipeline ensure more uniform and efficient mixing

Water Tank: High and low liquid level sensors enable automatic water replenishment with secondary precision filling. An integrated admixture tank allows for three-component material mixing

1200L Agitator: Low-speed mixing prevents sedimentation and solidification. Features an automatic cleaning function, with dual discharge ports available as needed

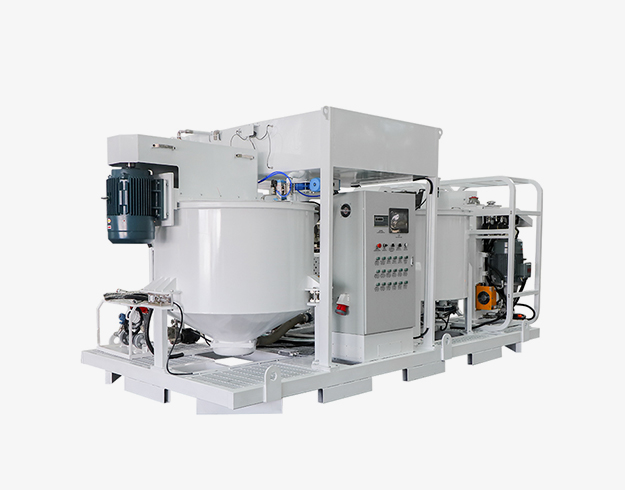

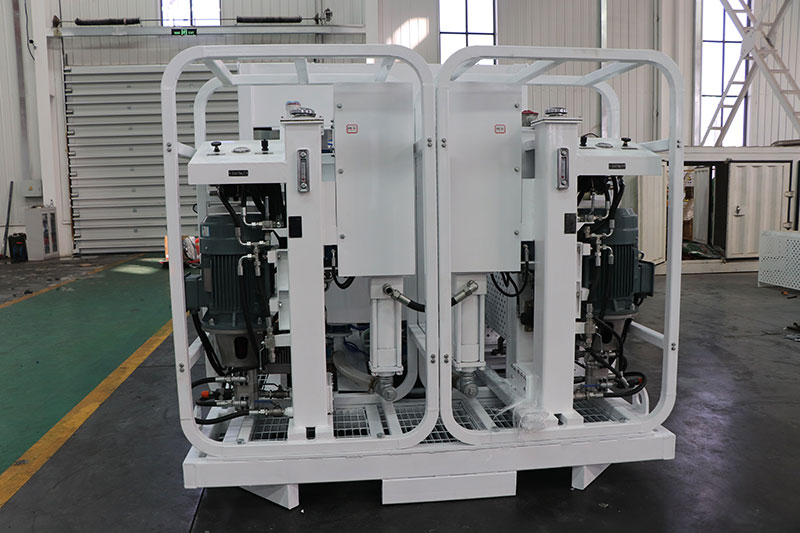

Automatic Grouting Station

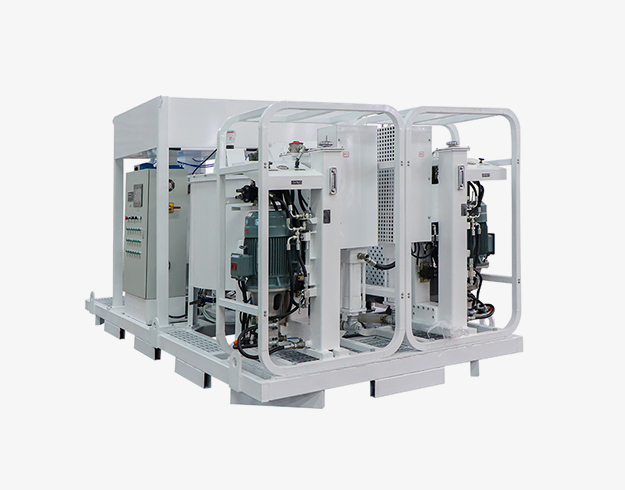

Grouting Pump: Compact design; single-cylinder, double-acting continuous grouting; minimal pressure fluctuations and uniform discharge; few components and low maintenance costs

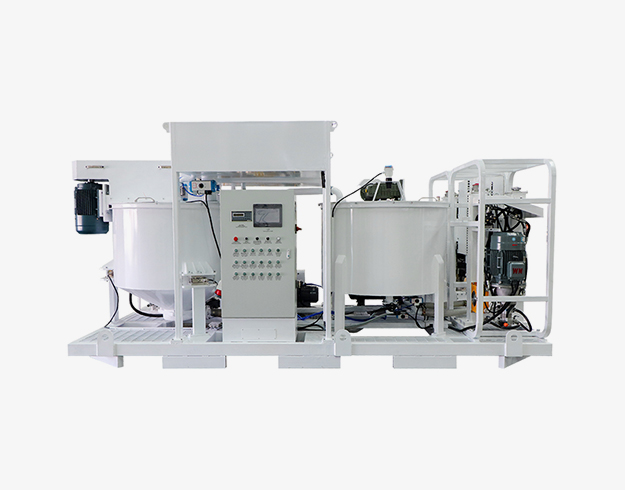

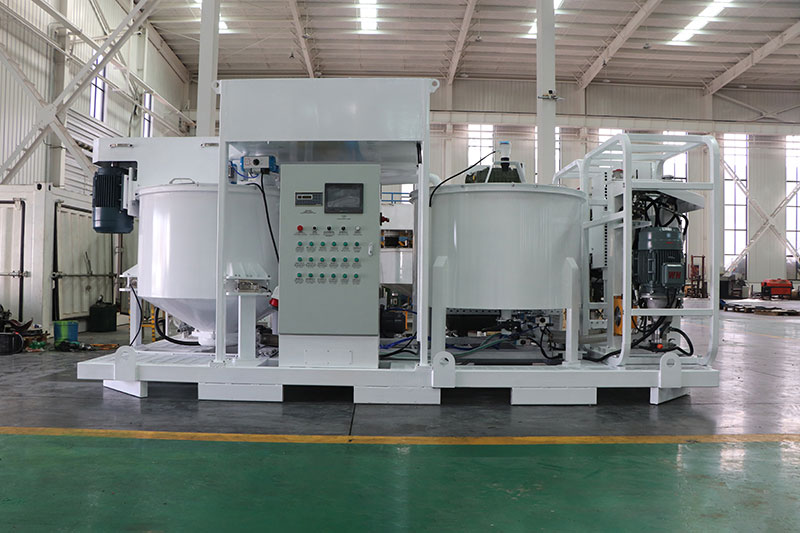

Control Panel: Simple operation and maintenance; supports both fully automatic and manual modes; allows for free adjustment of formula ratios to achieve automatic material mixing and replenishment

Explosion-Proof Electrical Control Cabinet: IP56 protection rating; safe and stable; suitable for various construction environments

Parameters

Parameters of HWGP1200/1200/2X75/100PL-E Compact Automatic Grout Plant

Name		Data
Model		HWGP1200/1200/2×75/100PL-E
Mixer	Capacity (V)	1200L
	Mixture capacity	10m3/h
	W/C ratio	0.5~1
Agitator	Capacity	1200L
Agitator	Power	3.0Kw
Circulation pump	Power	22KW
	Rate Rev.	1800r/min
	Flow	1500L/min

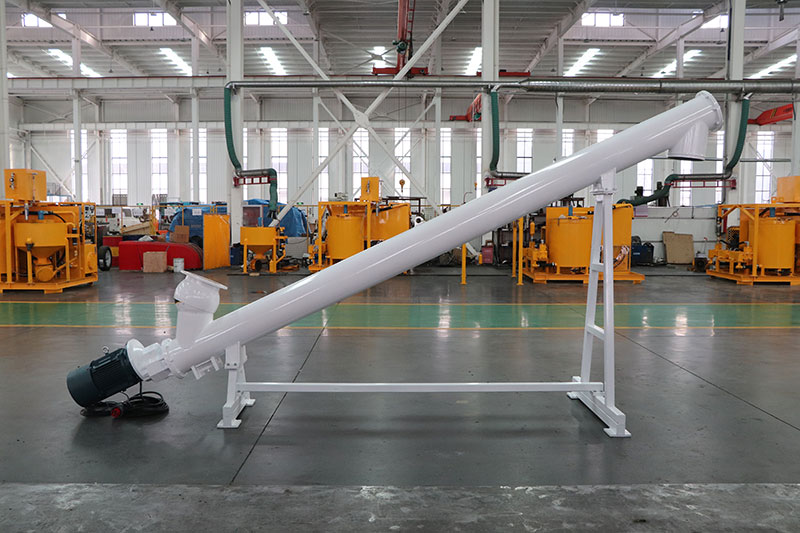

Screw feeder	Power	11KW
Screw feeder	Max. delivery volume	20-40t/h
Water supply	Tank capacity	950L
	Water pump	50ZX20-30 (4.0KW)
	Flow@head	20m3/h@30m
Additive supply	Tank capacity	150L
	Additive pump	25SFBX-8 (0.25KW)
	Flow@head	2m3/h@8m
Air supply	Air compressor	EV-80 (4.0KW)
Air supply	Exhaust volume	0.52m3/min
Grouting pump (2×1set)	Model	LGH75/100PI-E
	Piston diameter	100mm
	Piston stroke	150mm
	Low pressure@Flow	0-50bar@0-75L/min
	High pressure@Flow	0-100bar@0-40L/min
	Power	11Kw
Dimension(without screw feeder)		4600×2250×2370mm
Weight		4100Kg
Note: We can customize according to your requirements.

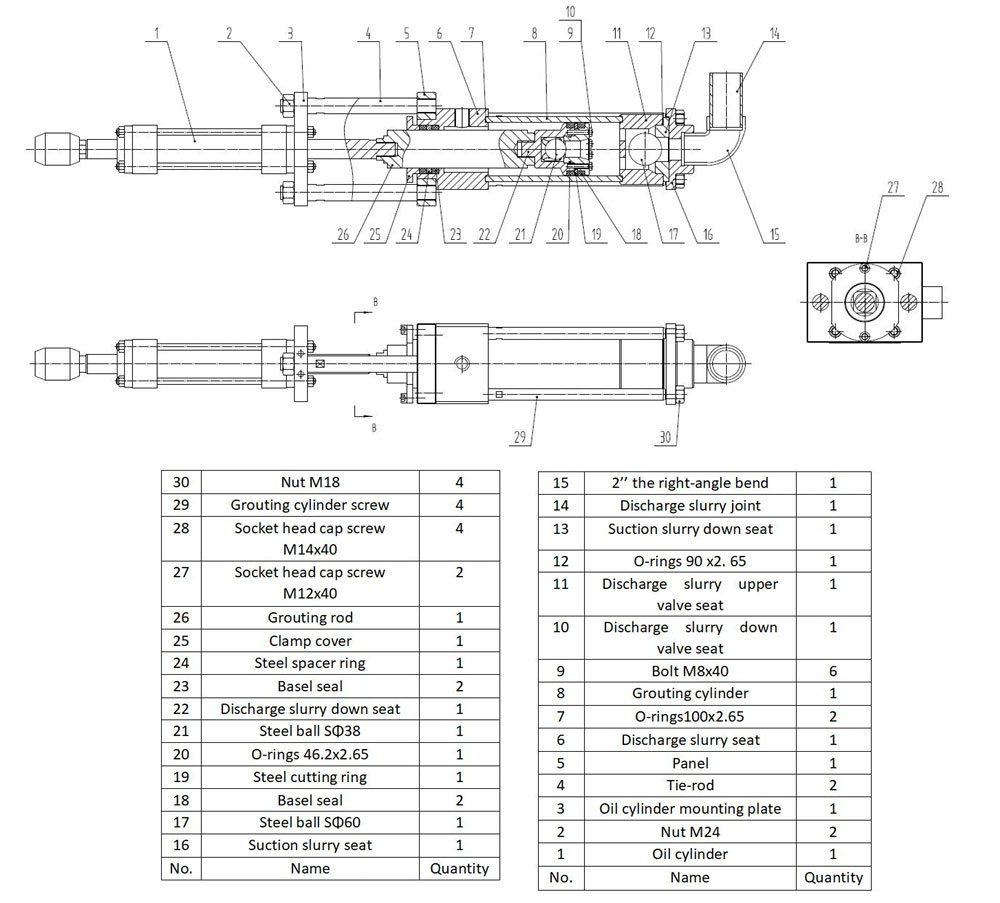

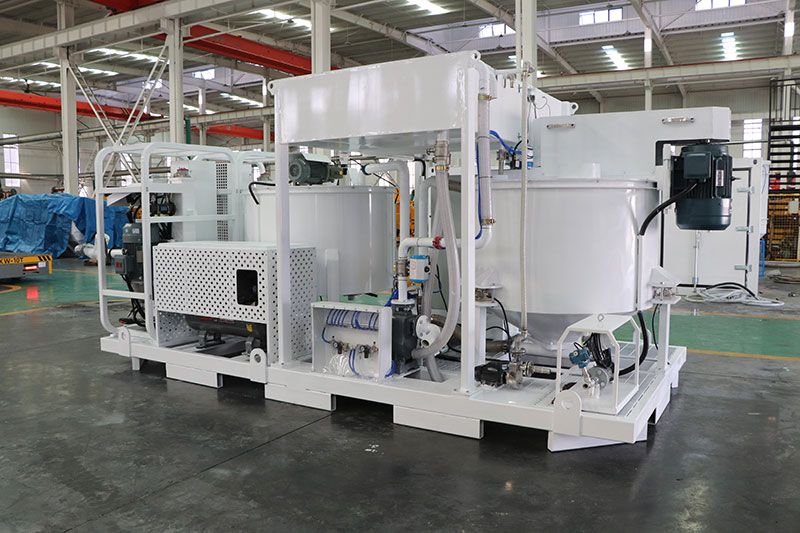

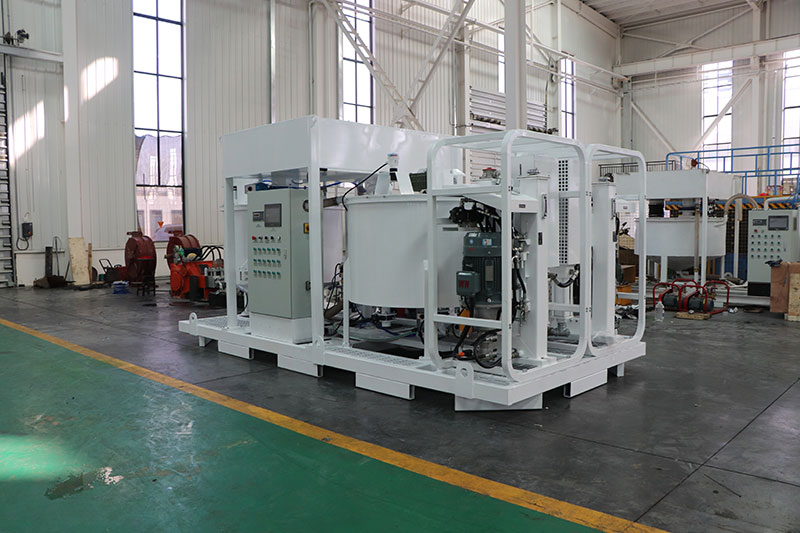

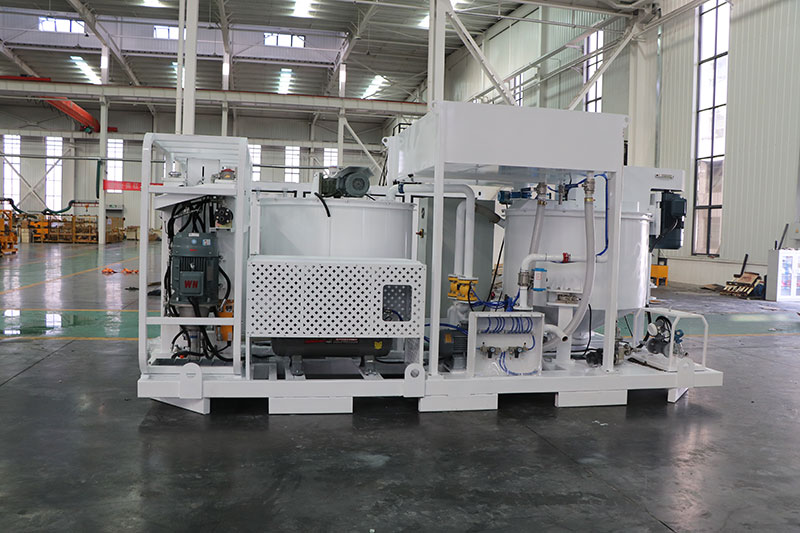

Detail Part

Detail Part of HWGP1200/1200/2X75/100PL-E Compact Automatic Grout Plant

Application

Application of HWGP1200/1200/2X75/100PL-E Compact Automatic Grout Plant

HWGP1200/1200/2X75/100PL-E Compact automatic grout plant is primarily used in tunnel and subway construction, underground mining, hydraulic dams, bridge pile foundations, and deep excavation projects to perform high-pressure grouting for reinforcing surrounding rock, blocking groundwater, backfilling abandoned mine workings, and enhancing foundation bearing capacity and structural waterproofing.

Grouting Construction In Deep Foundation Pits, Tunnels, Mines, Water Conservancy Projects And Buildings

Whether in ground reinforcement or underground excavation projects, our full range of jet grouting plant is committed to providing cutting-edge technology and excellent support to ensure our customers can efficiently achieve their project goals.

Colloidal Grout Mixing Plant for Tunneling & Mining

The colloidal grout mixing plant for tunneling & mining engineering has successfully solved the complex geological grouting problem in the slope reinforcement project of Australian mining enterprises by virtue of high shear mixing and other core technologies.

Packaging

Packaging Display
