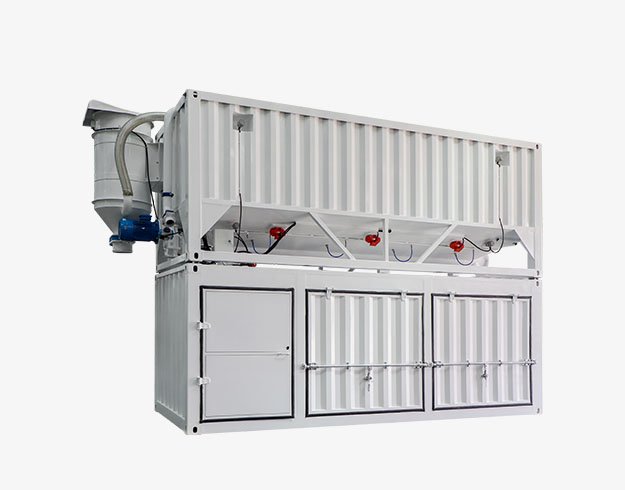

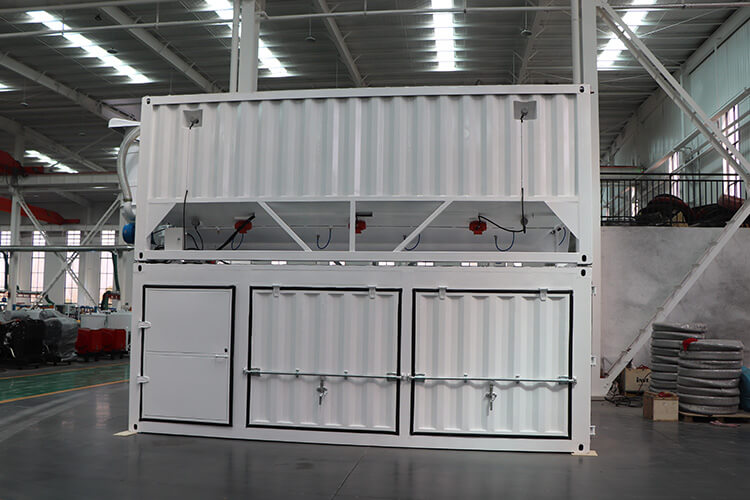

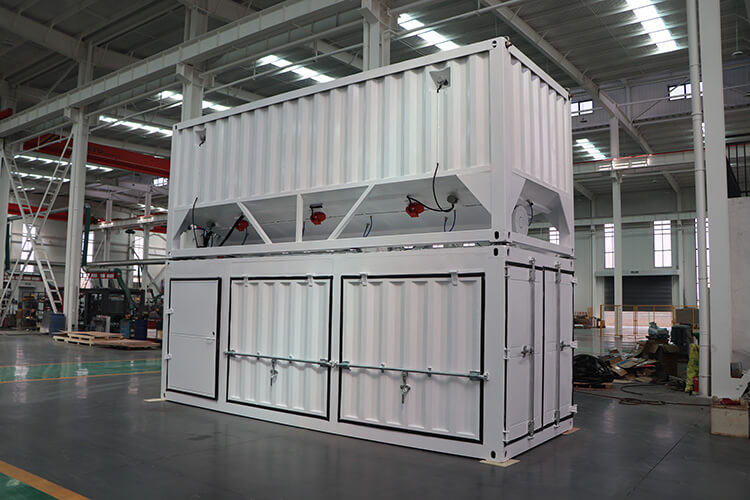

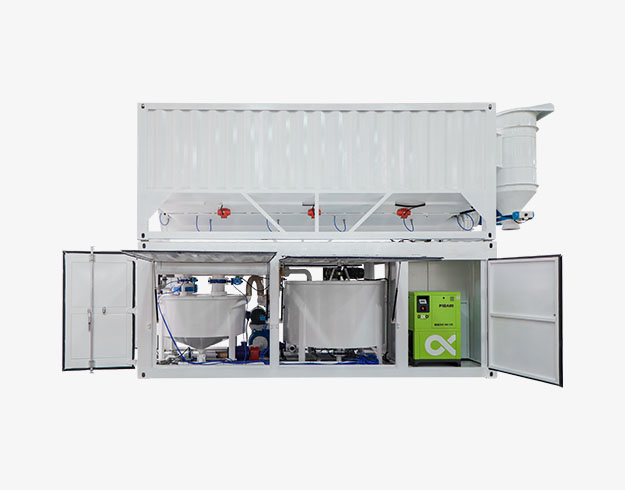

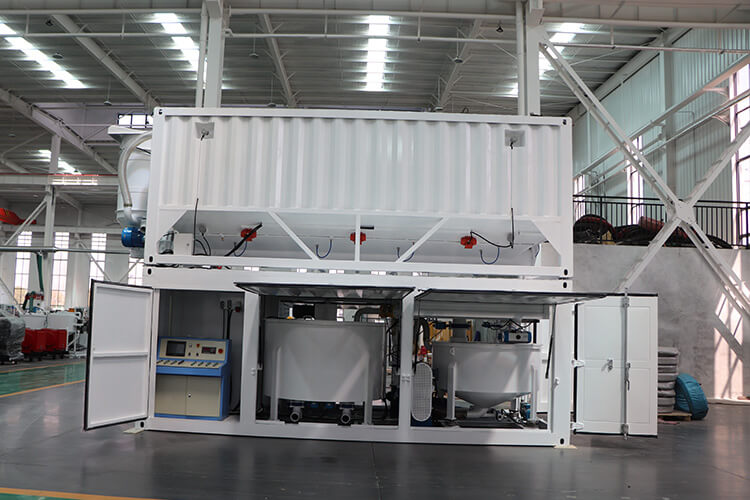

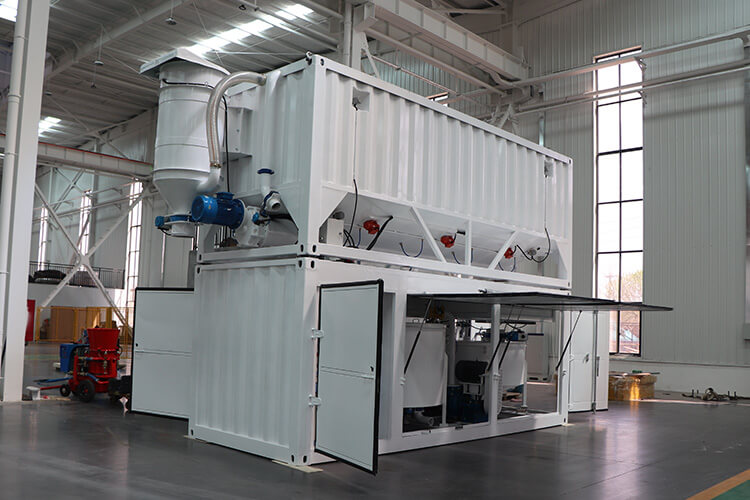

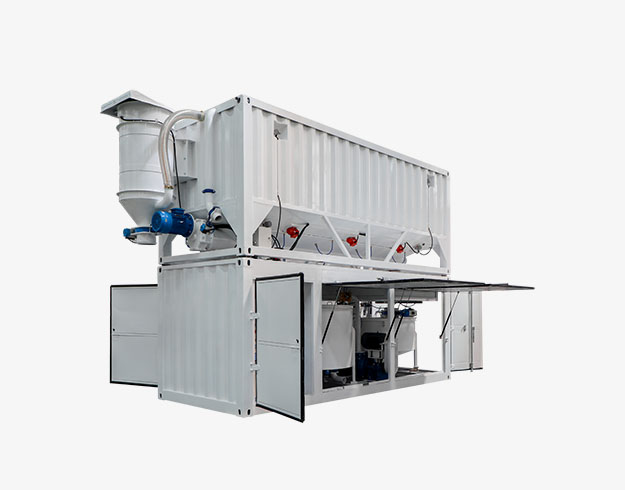

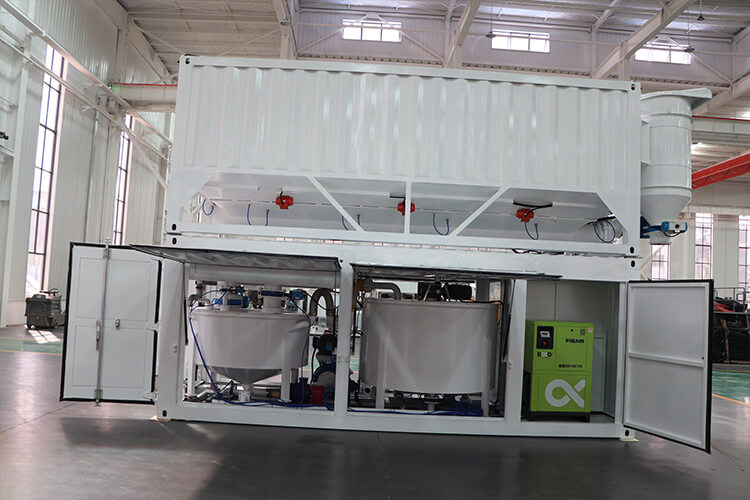

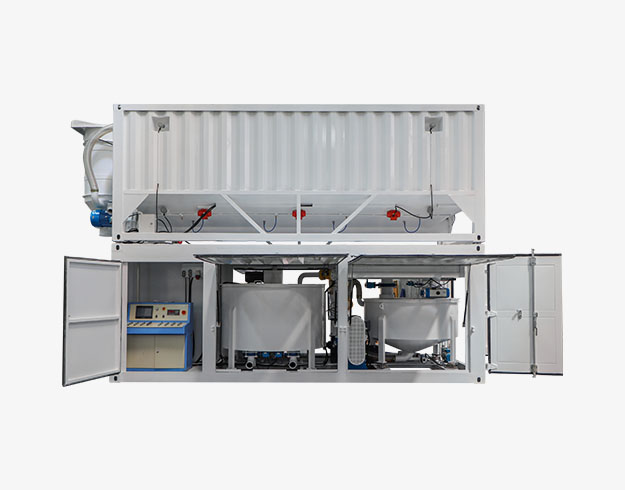

HWMA30 Automatic Grouting Mixing Plant and HCS17B Cement Silo

Brief Introduction

Introduction of HWMA30 Automatic Grouting Mixing Plant and HCS17B Cement Silo

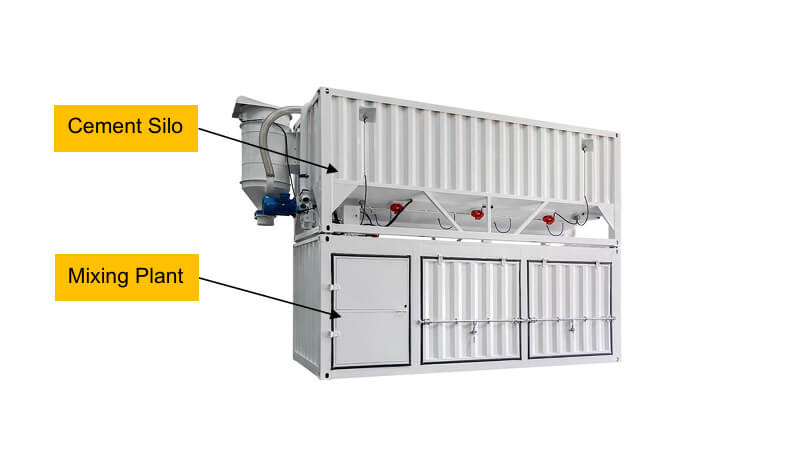

HCS17B Horizontal Cement Silo is designed based on 20ft container size. It can be stored directly in a standard container. Save shipping costs. More container silos can be stacked together to work.
HWMA30 Automatic Grouting Mixing Plant is mainly conceived to obtain, through a high turbulence mixing of water and cement powder, a cement mixture (cement grout), or, by using water and bentonite powder, a bentonite slurry for plastic mud. Also the preparing of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid components (for every screw conveyor).
The cement mixture or the bentonite slurry is then transferred to the other units, according to the type of foreseen geotechnical machines.
Mixing Plant can be work under Container Silo. 20ft and 40ft container silo both are provided.

Features

Features of HWMA30 Automatic Grouting Mixing Plant and HCS17B Cement Silo

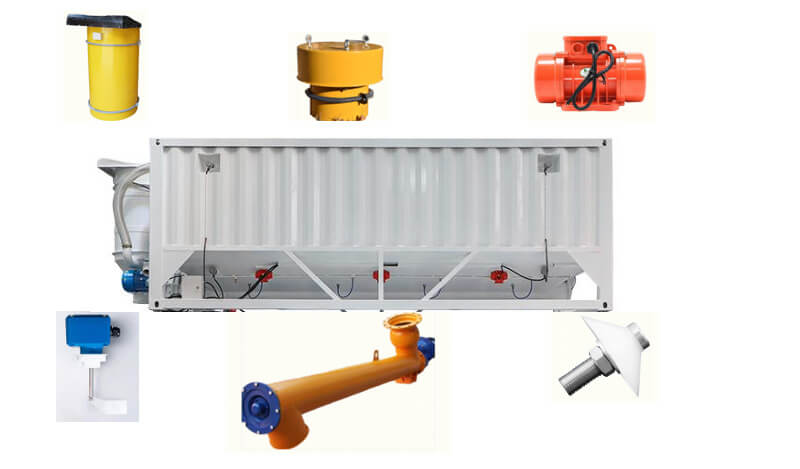

CEMENT SILO

Dust removal(1)

Pressure relief valve(2)

OLI-WOLONG Vibrator-1.3Kw(6)

Upper recalling dipstick-damped rotation controller(2) and lower recalling dipstick-damped rotation controller(2)

Screw Conveyer-11Kw(1)

Air disc-vibrational fluidization and jet fluidization(10)

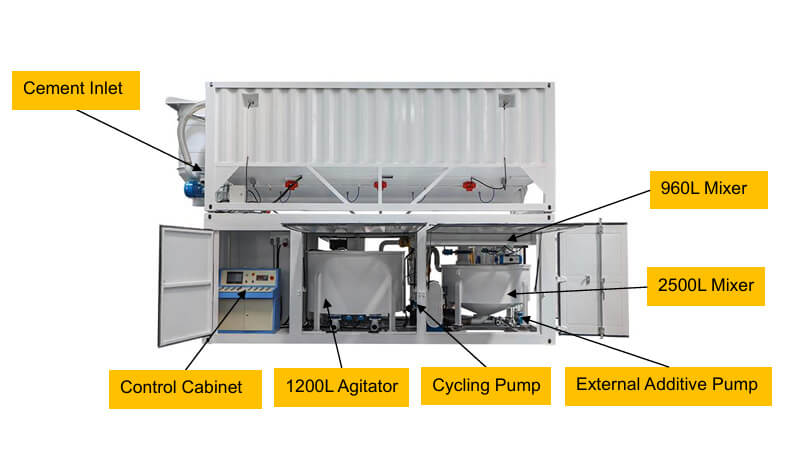

Automatic Mixing Plant

High-speed Colloidal Grout Mixer

Main pipeline valves are all pneumatic valves

Mixture, cycling pump and agitator have automatic cleaning function

Cement can be added by cement silo or screw feeder automatically

The preparing of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid components

Two modes of operation：fully automatic mode and manual mode

Easy to operate and maintain

Up to 5mm particle size

Equipped with some ceiling lamps, for illuminating the different working areas.

Can be placed directly in the 20ft cabinet

Parameters

Parameters of HWMA30 Automatic Grouting Mixing Plant and HCS17B Cement Silo

Specification:
1. Two modes of operation: fully automatic mode and manual mode. 2. Automatic cleaning system. 3. The preparation of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid component. 4. Can be placed directly in the 40ft cabinet.
HCS17B Cement Silo
Volume	17m³	Conveying	60t/h
Inlet Dia.	100mm	Outlet Dia.	325mm
Main power	11Kw	Power supply	380V, 50Hz
HWMA30 Mixing Plant
Mixer		Agitator
Capacity	1200L	Capacity	2500L
Flow	50L/s	Speed	25r/min
Max. output	30m³/h	Level sensor	Ultrasonic sensor
Power	15Kw	Power	3.0Kw

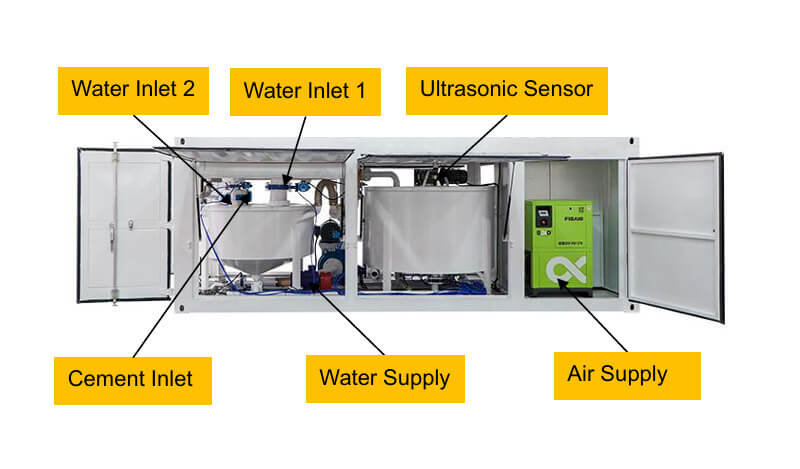

Air supply system		Water supply system
Flow	540-1350L/min	Water tank volume	960L
Pressure	0.8MPa	Flow@lift	11.11L/s@20m
Power	7.5Kw	Power	5.5Kw
External additive supply system		Flow@lift	2.8L/s@18m
External additive supply system		Power	1.5Kw
Power supply		380V, 50Hz
Note: 1. All data are tested by water. 2. We can customize products according to your requirements.

Detail Part

Detail Part of HWMA30 Automatic Grouting Mixing Plant and HCS17B Cement Silo

Application

Application of HWMA30 Automatic Grouting Mixing Plant and HCS17B Cement Silo

The container size HWMA30 Automatic Grouting Mixing Plant and HCS17B Cement Silo are designed to handle large volumes of material, allowing for high capacity mixing of bentonite, cement and water.

Grouting Construction In Deep Foundation Pits, Tunnels, Mines, Water Conservancy Projects And Buildings

Whether in ground reinforcement or underground excavation projects, our full range of jet grouting plant is committed to providing cutting-edge technology and excellent support to ensure our customers can efficiently achieve their project goals.
