5m³/h Mortar Mixer and Transfer Machine

Brief Introduction

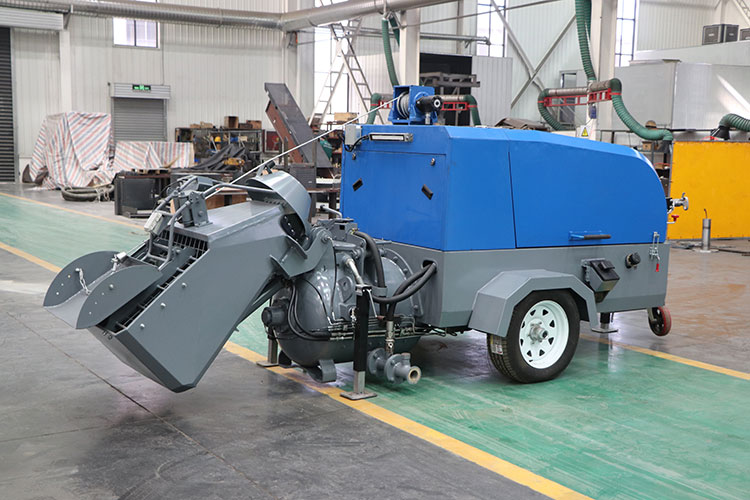

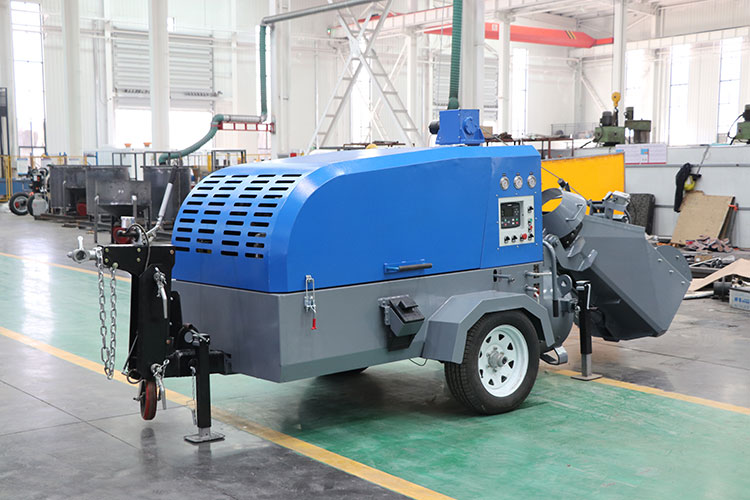

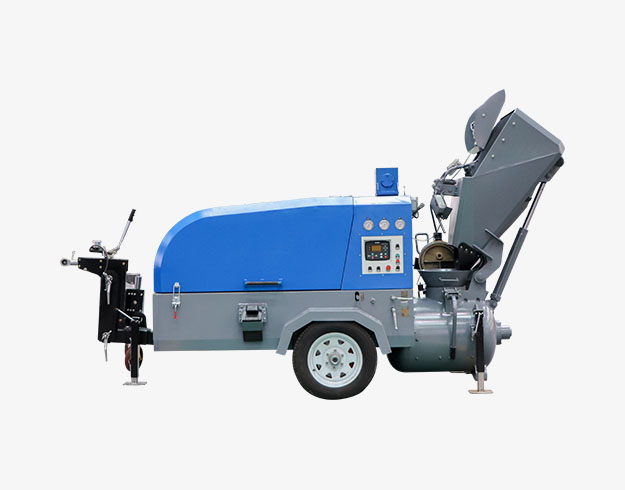

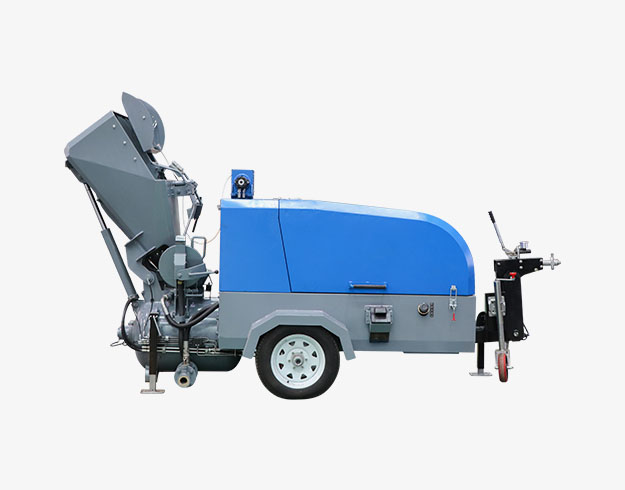

5m³/h Mortar Mixer and Transfer Machine

This 5m³/h mortar mixer and transfer machine can achieve bidirectional horizontal and vertical material conveying. The built-in air compressor can generate strong pressure and airflow to ensure stable material conveying within the working range. Compared with traditional construction methods, it makes leveling operations easier and more efficient, significantly shortening construction time.

Features

5m³/h Mortar Mixer and Transfer Machine

Mortar Mixer and Transfer Machine

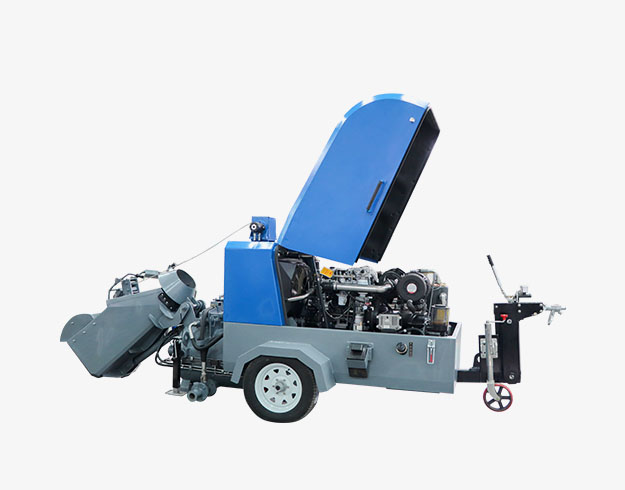

60KW diesel engine

Air compressor and mixer integrated

Adjustable trailer connectors

Replaceable wear-resistant lining plate

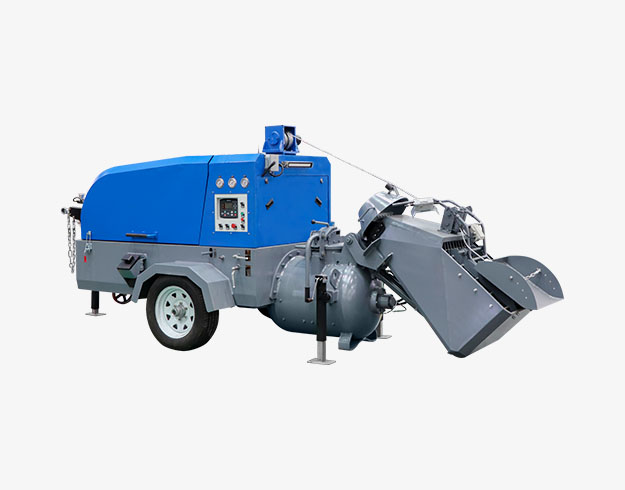

Semi-Dry Mortar Transfer Pump

Hydraulic-driven feeding device for easy loading

4 wear-resistant mixing blades

Visual operation parameter display screen

Parameters

Parameters of 5m³/h Mortar Mixer and Transfer Machine

① Add Material 1 to Mixing Tank 5.
② Put on the sealing cover 2 and press it down firmly.
③ The materials are fully stirred in the mixing tank 5.
④The air compressor starts to generate compressed air 3 with sufficient pressure, which enters the mixing drum 5 and the lower pipeline.
⑤The air compressor starts to generate compressed air 3 with sufficient pressure, which enters the mixing drum 5 and the lower pipeline, completing material conveying.

Model	HWPXT200-D/A
Diesel Engine	60KW
Vessel Capacity	Gross 260L / Net 200L
Output Capacity	5m³/h
Transfer Range	Horizontal 220m, Vertical 50 Floor
Operating Pressure	4-8bar
Max. Vessel Pressure	8bar
Compressor Flow Rate	6m³/min
Aggregate Size	16mm
Chassis Tow Connection	Ball Coupling
Fuel Tank	50L
Dimension L×W×H	5320×1700×2000mm
Weight	2415kg

Detail Part

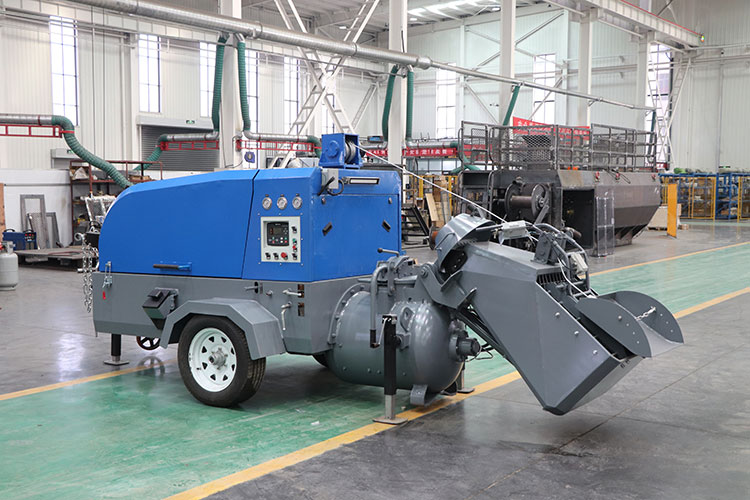

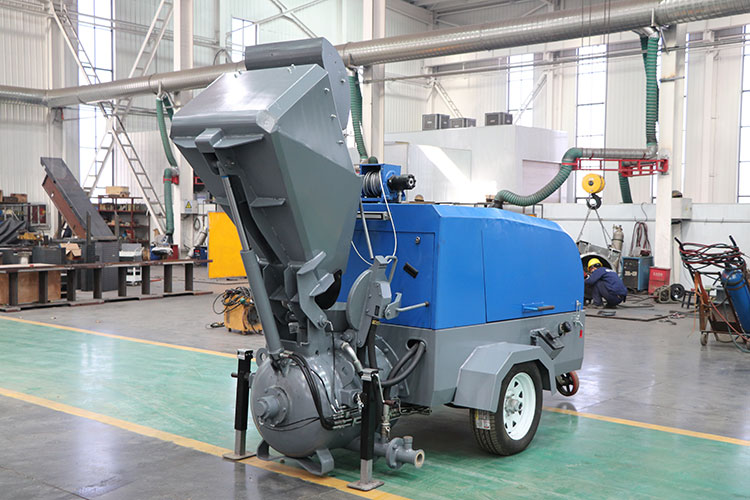

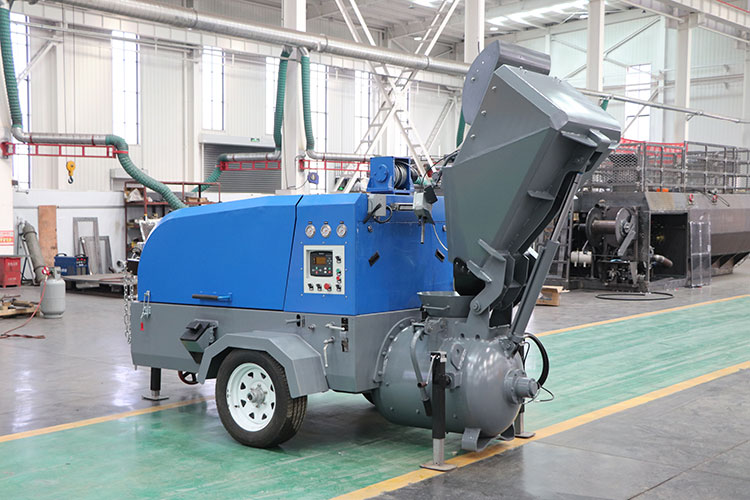

Detail Part of 5m³/h Mortar Mixer and Transfer Machine

Application

Application of 5m³/h Mortar Mixer and Transfer Machine

HWPXT200-D/A Mortar Mixer and Transfer Machines are widely used in leveling operations, suitable for leveling various substrates such as floors, walls, and ceilings. These include laying self-leveling cement bases on residential interiors, screeding before tile laying in commercial spaces, leveling industrial plant floors, and leveling and finishing walls during renovations of existing and new buildings.

$Refractory Gunning Machine For Repairing Of Furnaces$

Refractory Gunning Machine For Repairing Of Furnaces

The refractory gunning machine is widely used in boiler chimneys, kilns, steelmaking furnaces and other industries. Through the high-quality application of refractory materials, the gunning machine has formed a firm and lasting combination with the existing lining, ensuring that the repaired lining can withstand high temperature and harsh conditions for a long time.

Industrial Hose Pump For A Paper Mill In Thailand

Industrial hose pumps are used in many key processes of paper mills, including slurry transportation, chemical addition, and wastewater treatment.

Hydroseeding Machine For Slope Protection In Australia

Hydroseeding machine can quickly and massively plant vegetation on slopes. In Australia, the use of hydroseeding machine for slope protection has proved to be a very effective method to prevent erosion.

Grouting Construction In Deep Foundation Pits, Tunnels, Mines, Water Conservancy Projects And Buildings

Whether in ground reinforcement or underground excavation projects, our full range of jet grouting plant is committed to providing cutting-edge technology and excellent support to ensure our customers can efficiently achieve their project goals.

Packaging

Packaging Display

Products

Recommend Relevant Products

HWMP-5X Mortar Grout Mixer Pump

Mixer Capacity:100 L

Agitator Capacity:100L

chat now

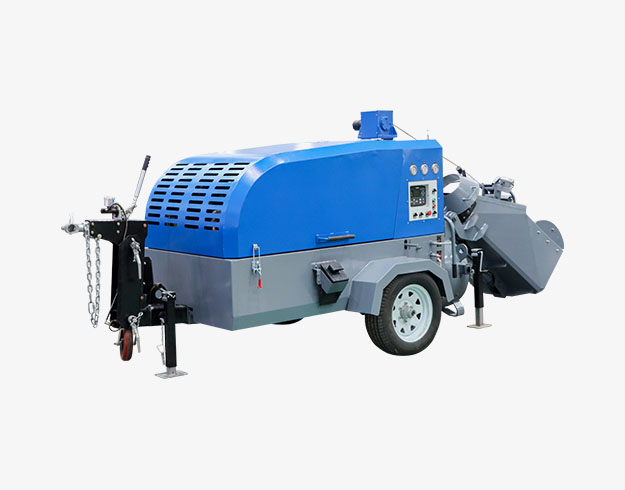

HWPXT200-D/A Semi-Dry Mortar Floor Screed Pump
