Pneumatic Mortar Screed Conveyor

Brief Introduction

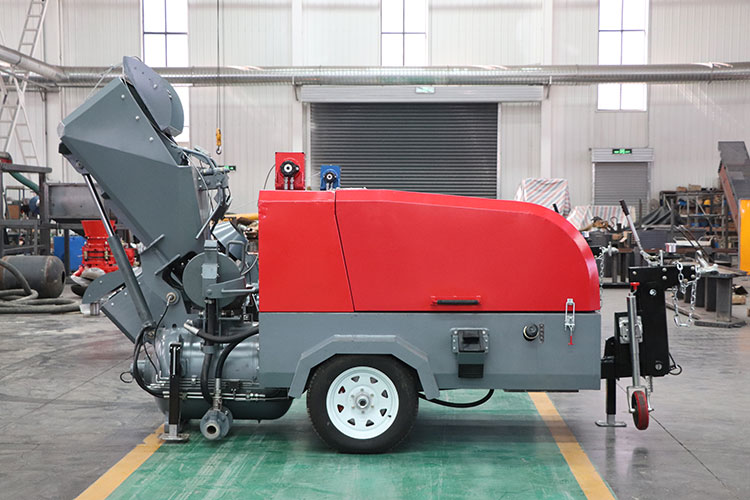

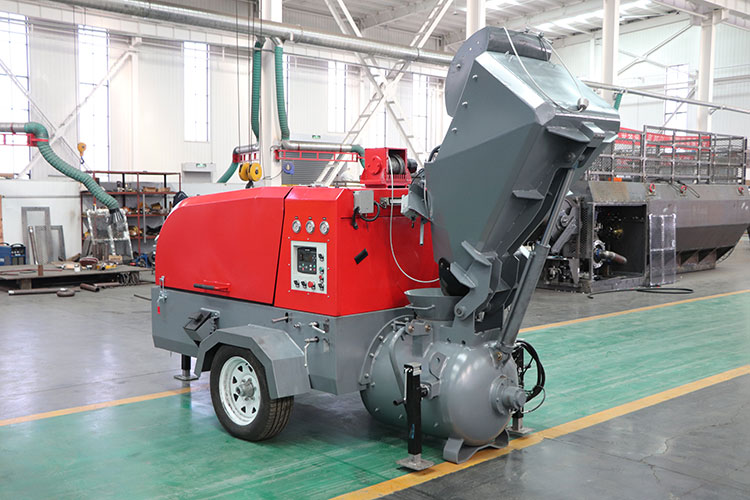

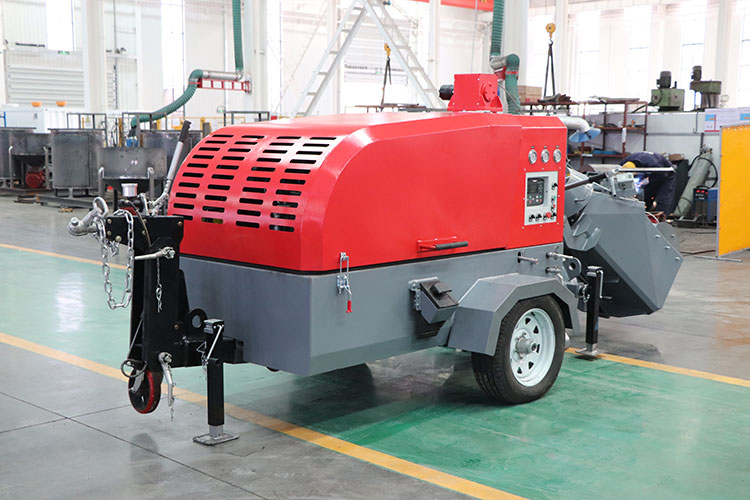

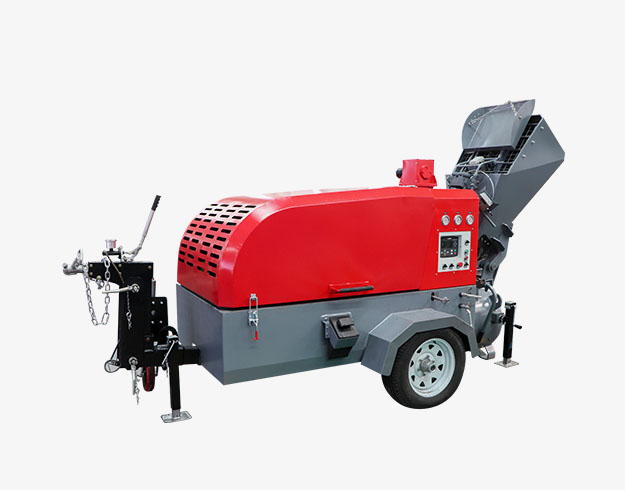

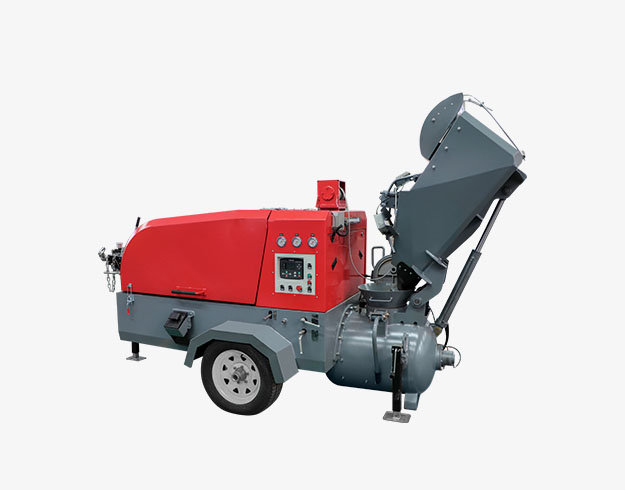

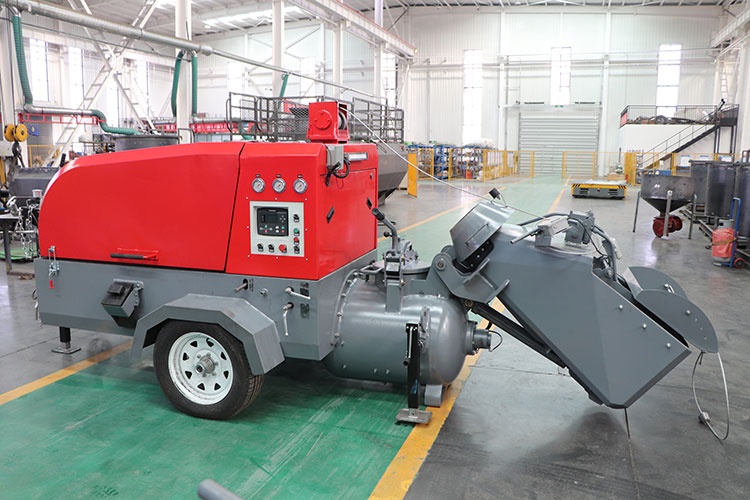

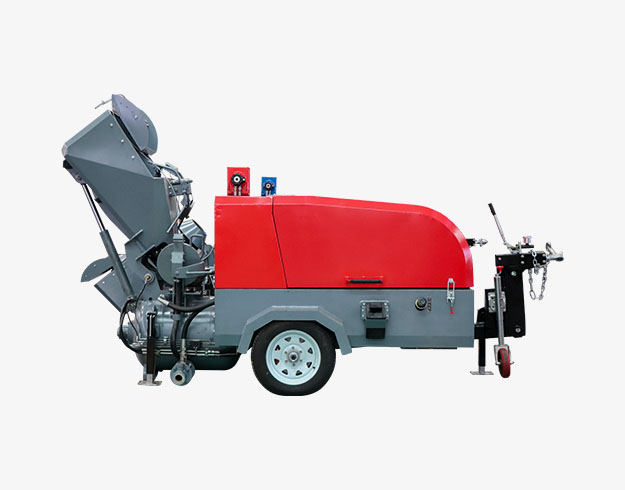

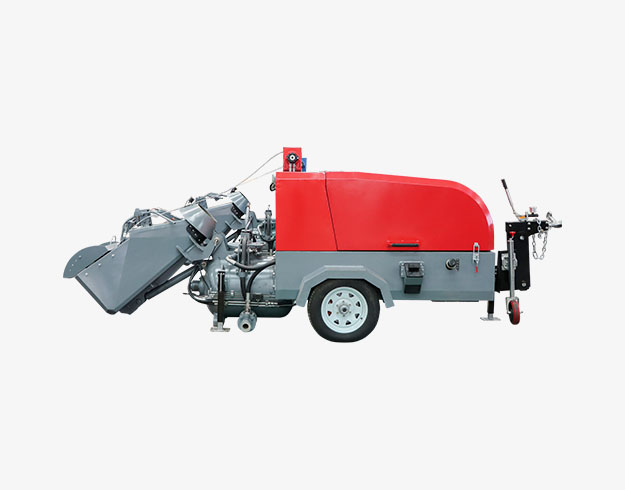

Pneumatic Mortar Screed Conveyor

The HWPXT200-D/A Pneumatic Mortar Screed Conveyor is specifically designed for the continuous conveying of mortar building materials in construction projects. Its stable and reliable power output ensures smooth material transport throughout the entire process. The mortar conveyor is widely applicable to mortar construction in floor leveling, wall plastering, municipal roads, and various building projects, providing an efficient and professional solution for leveling operations.

Features

Pneumatic Mortar Screed Conveyor

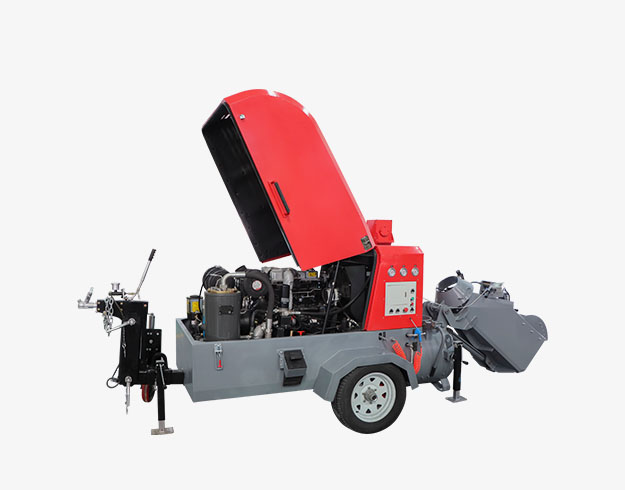

60KW diesel engine

Air compressor and mixer integrated

Adjustable trailer connectors

Replaceable wear-resistant lining plate

Floor screed conveyer

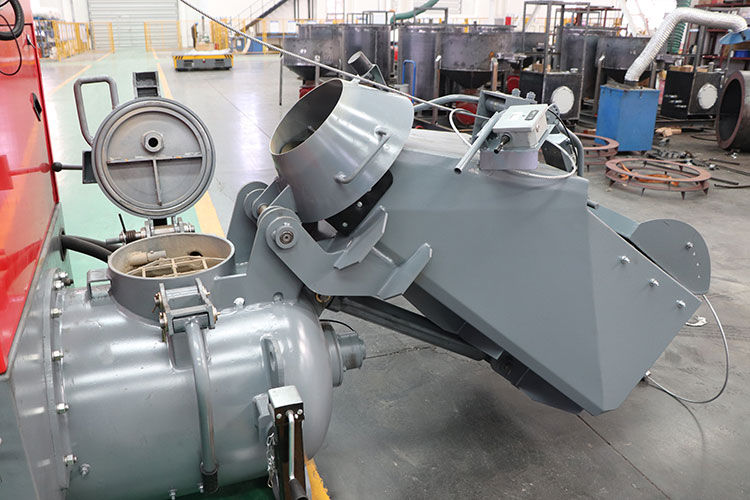

Hydraulic-driven feeding device for easy loading

4 wear-resistant mixing blades

Visual operation parameter display screen

Parameters

Parameters of Pneumatic Mortar Screed Conveyor

① Add Material 1 to Mixing Tank 5.
② Put on the sealing cover 2 and press it down firmly.
③ The materials are fully stirred in the mixing tank 5.
④The air compressor starts to generate compressed air 3 with sufficient pressure, which enters the mixing drum 5 and the lower pipeline.
⑤The air compressor starts to generate compressed air 3 with sufficient pressure, which enters the mixing drum 5 and the lower pipeline, completing material conveying.

Model	HWPXT200-D/A
Diesel Engine	60KW
Vessel Capacity	Gross 260L / Net 200L
Output Capacity	5m³/h
Transfer Range	Horizontal 220m, Vertical 50 Floor
Operating Pressure	4-8bar
Max. Vessel Pressure	8bar
Compressor Flow Rate	6m³/min
Aggregate Size	16mm
Chassis Tow Connection	Ball Coupling
Fuel Tank	50L
Dimension L×W×H	5320×1700×2000mm
Weight	2415kg

Detail Part

Detail Part of Pneumatic Mortar Screed Conveyor

Application

Application of Pneumatic Mortar Screed Conveyor

HWPXT200-D/A Mortar Mixer and Transfer Machines are widely used in leveling operations, suitable for leveling various substrates such as floors, walls, and ceilings. These include laying self-leveling cement bases on residential interiors, screeding before tile laying in commercial spaces, leveling industrial plant floors, and leveling and finishing walls during renovations of existing and new buildings.
