Electric Pneumixer and Transfer Machine

Brief Introduction

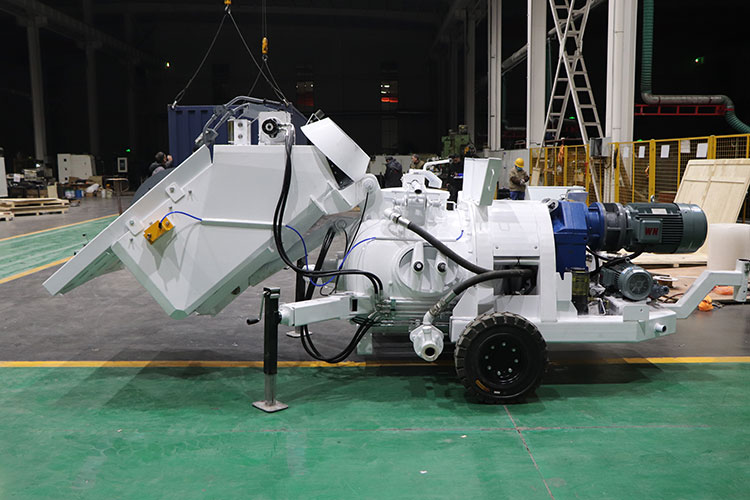

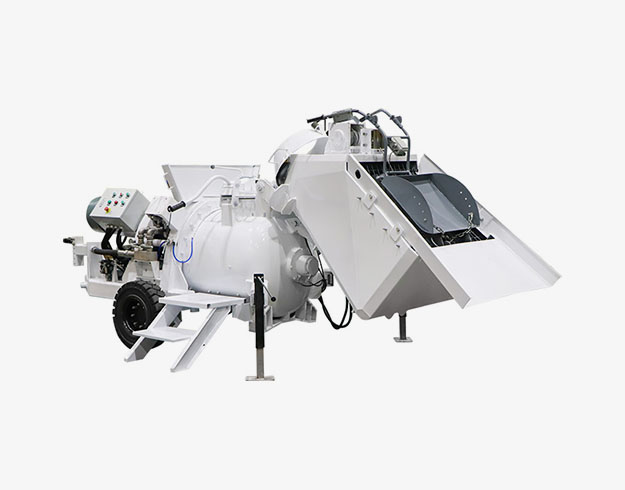

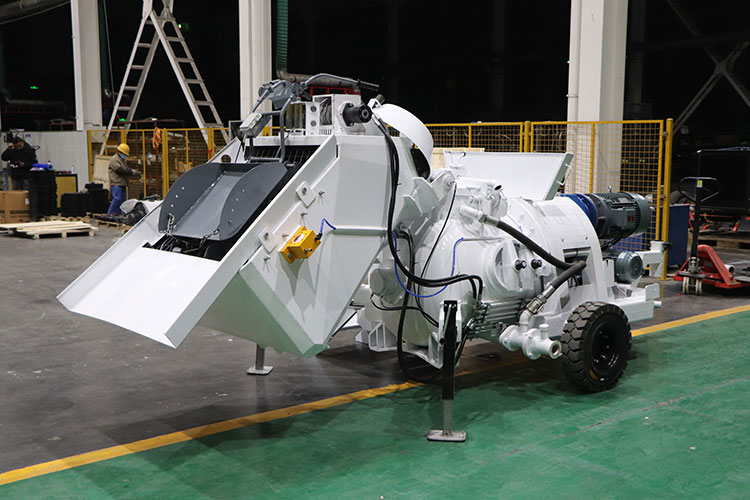

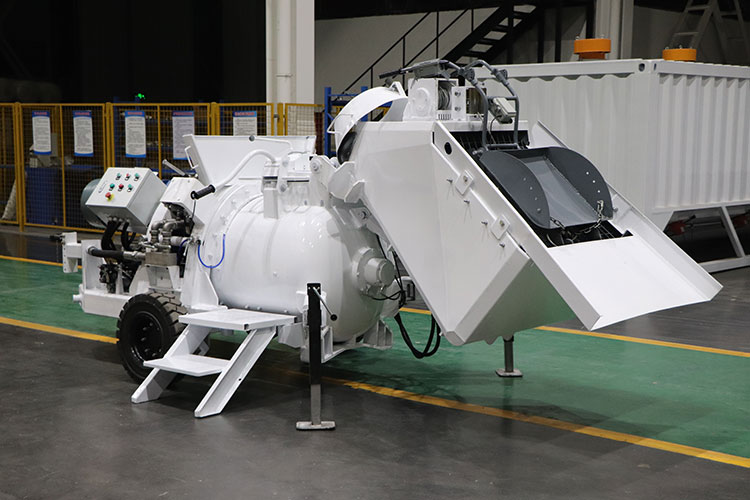

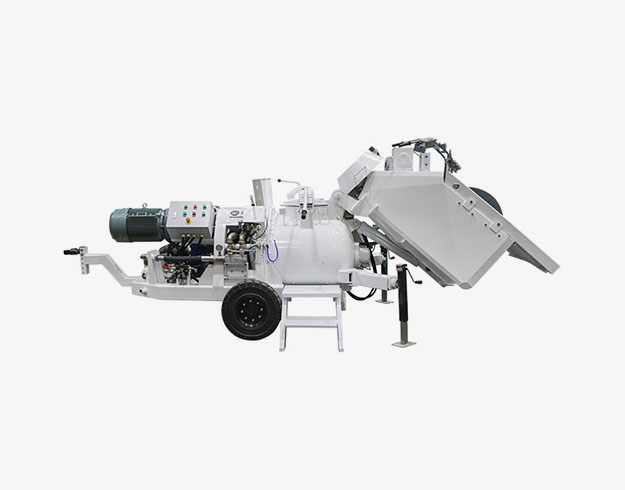

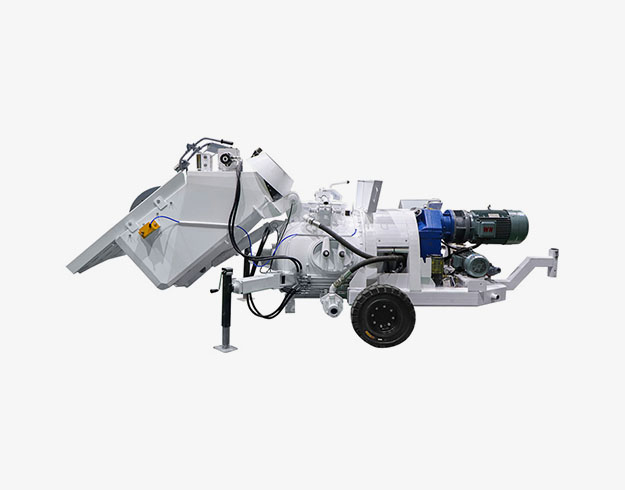

HWPXT400-E Electric Pneumixer and Transfer Machine

The HWPXT400-E Electric Pneumixer and Transfer Machine is a professional mortar mixing and conveying equipment suitable for leveling layer construction. It features continuous, stable, and smooth material conveying characteristics. Equipped with a 22KW mixing motor, a 4KW hydraulic pump motor, a large-capacity mixing tank, and four wear-resistant mixing blades, it ensures efficient mixing. With external air supply, it can achieve both horizontal and vertical material conveying.

Features

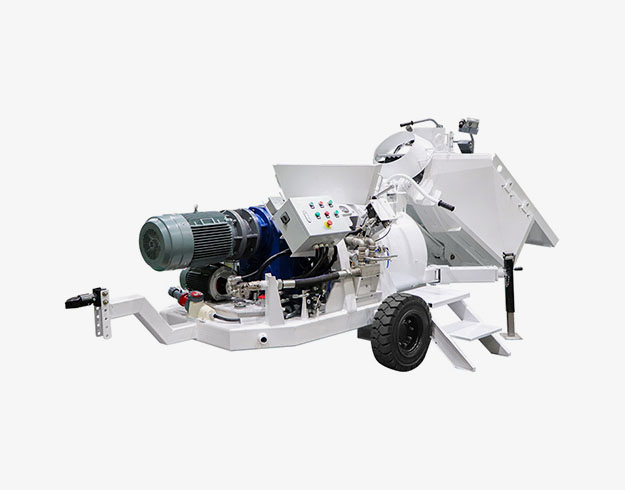

HWPXT400-E Electric Pneumixer and Transfer Machine

Pneumixer and Transfer Machine

22KW mixing motor and 4KW hydraulic pump motor

High load solid tire

Mobile trailer

Replaceable wear-resistant lining plate

Electric Mortar Transfer Pump

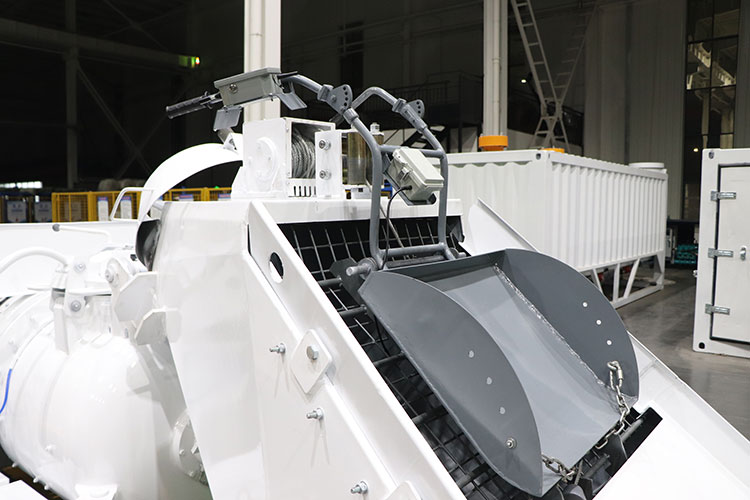

Hydraulic-driven feeding device for easy to load

4 wear-resistant mixing blades

High load adjustable jack support legs

Parameters

Parameters of HWPXT400-E Electric Pneumixer and Transfer Machine

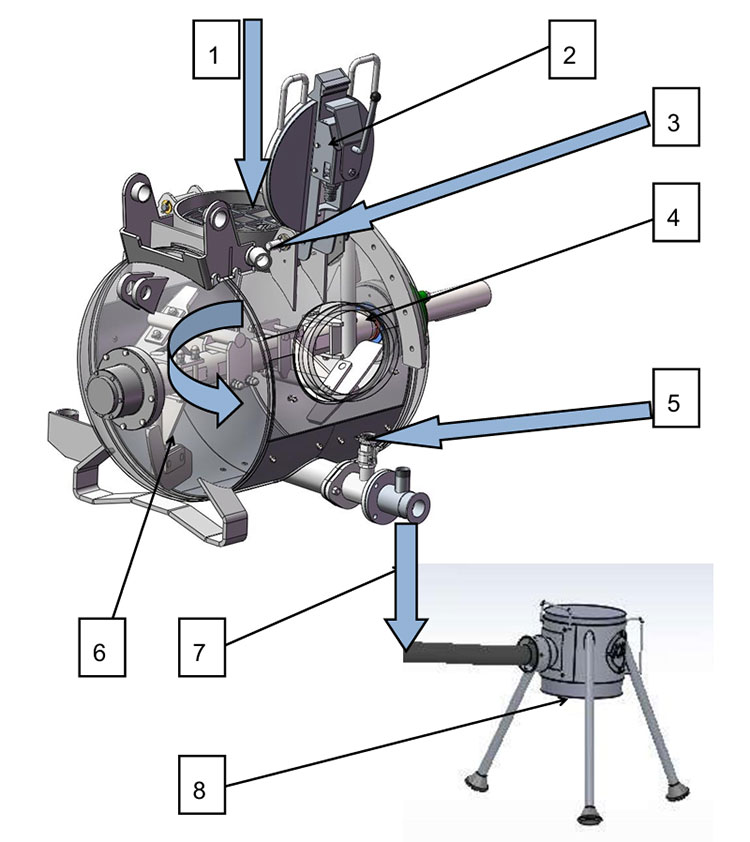

Electric Mortar Mixer and Transfer Machine detail

① Add material 1 to mixing tank 6.
② Put on the sealing cover 2 and press it down firmly.
③The materials are fully stirred in the mixing tank 6. Fully stir and push through mixing shaft 4.
④Compressed air with sufficient pressure enters the mixing tank 6 from the upper pipeline 3 and the lower pipeline 5, the material begins to be transported.
⑤The material is discharged from discharge port 7, passes through the conveying hose, reaches the discharge point, and is discharged at discharge port 8.

Model	HWPXT400-E
Mixing Motor	22KW
Hydraulic Pump Motor	4KW
Operating Voltage	380V, 50HZ
Vessel Capacity	Gross 520L / Net 400L
Output Capacity	9m³/h
Operation Pressure	2bar~8bar
Air Consumption	4~8m3/min
Lubrication System	Central Automatic
Chassis Tow Connection	Ball Coupling
Dimension L×W×H	4840×1700×1650mm
Weight	2595kg

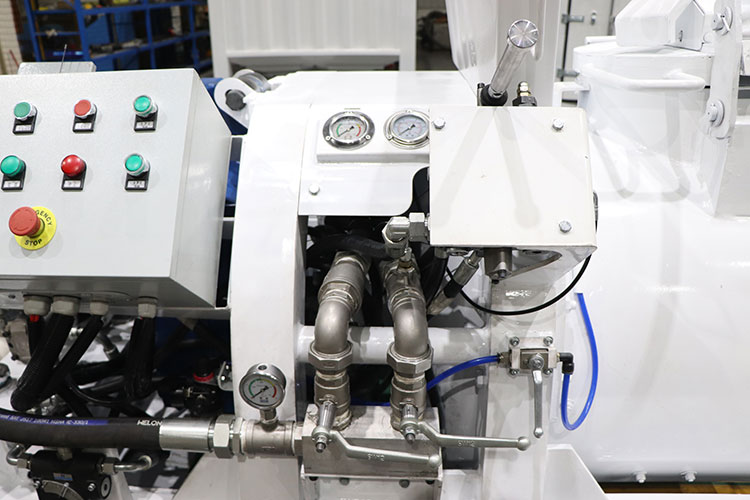

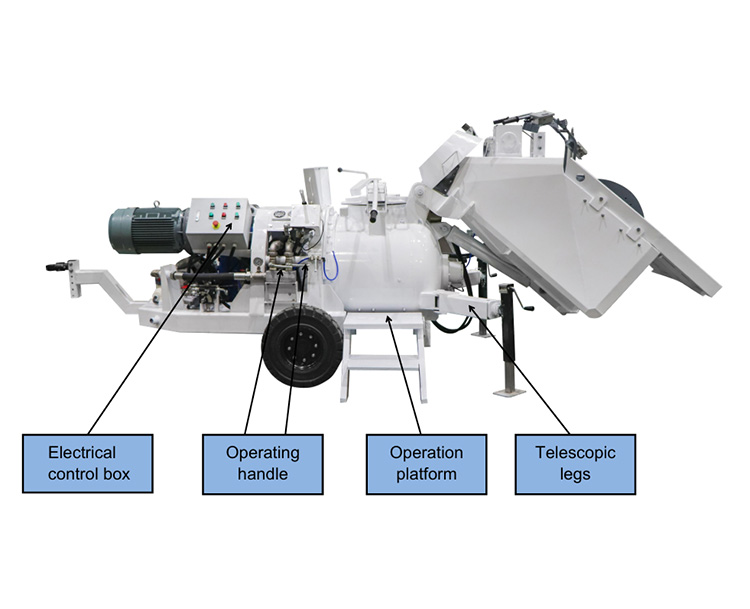

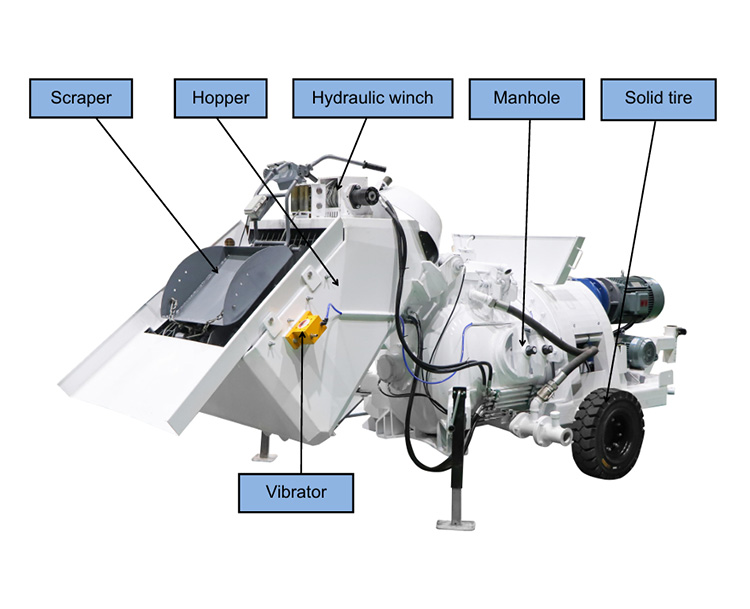

Detail Part

Detail Part of HWPXT400-E Electric Pneumixer and Transfer Machine

Application

Application of HWPXT400-E Electric Pneumixer and Transfer Machine

HWPXT400-E Electric Pneumixer and Transfer Machines are widely used in leveling operations, suitable for leveling various substrates such as floors, walls, and ceilings. These include laying self-leveling cement bases on residential interiors, screeding before tile laying in commercial spaces, leveling industrial plant floors, and leveling and finishing walls during renovations of existing and new buildings.

Grouting Construction In Deep Foundation Pits, Tunnels, Mines, Water Conservancy Projects And Buildings

Whether in ground reinforcement or underground excavation projects, our full range of jet grouting plant is committed to providing cutting-edge technology and excellent support to ensure our customers can efficiently achieve their project goals.

$Refractory Gunning Machine For Repairing Of Furnaces$

Refractory Gunning Machine For Repairing Of Furnaces

The refractory gunning machine is widely used in boiler chimneys, kilns, steelmaking furnaces and other industries. Through the high-quality application of refractory materials, the gunning machine has formed a firm and lasting combination with the existing lining, ensuring that the repaired lining can withstand high temperature and harsh conditions for a long time.

Hydroseeding Machine For Slope Protection In Australia

Hydroseeding machine can quickly and massively plant vegetation on slopes. In Australia, the use of hydroseeding machine for slope protection has proved to be a very effective method to prevent erosion.

Industrial Hose Pump For A Paper Mill In Thailand

Industrial hose pumps are used in many key processes of paper mills, including slurry transportation, chemical addition, and wastewater treatment.
