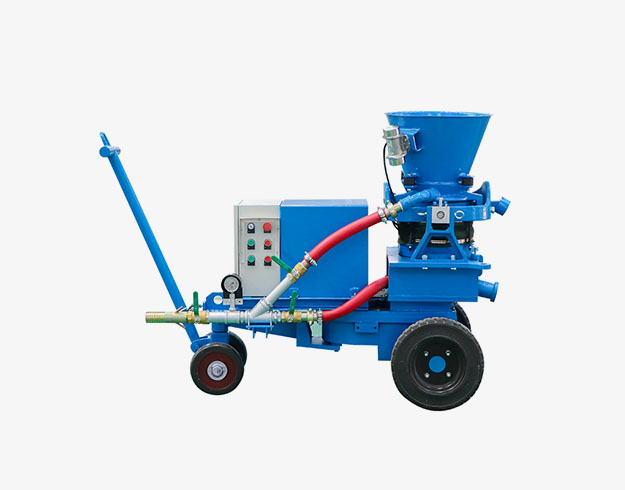

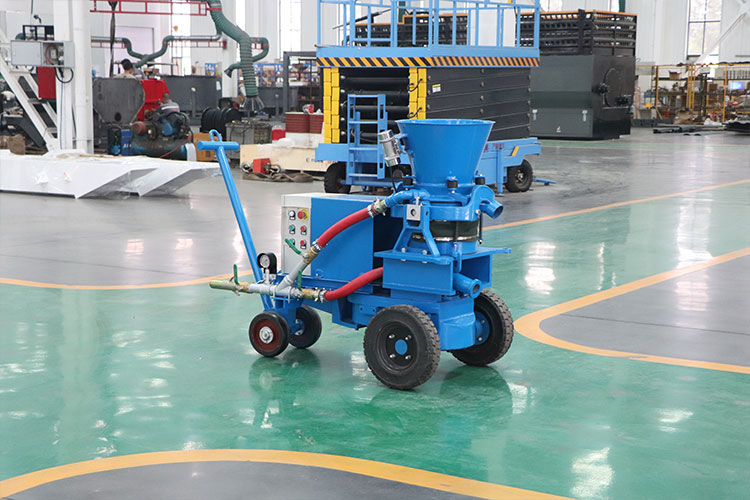

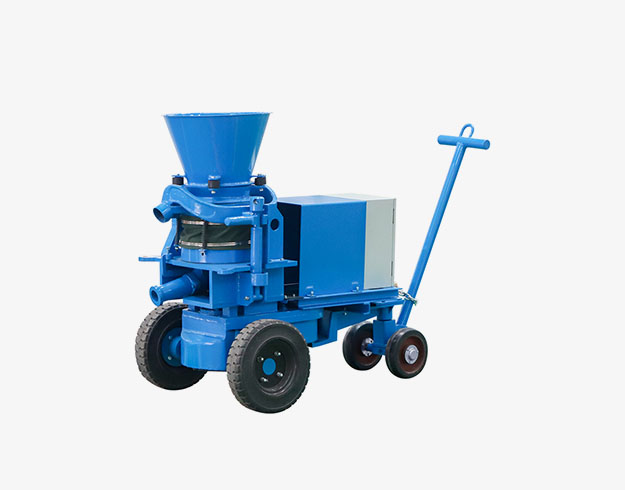

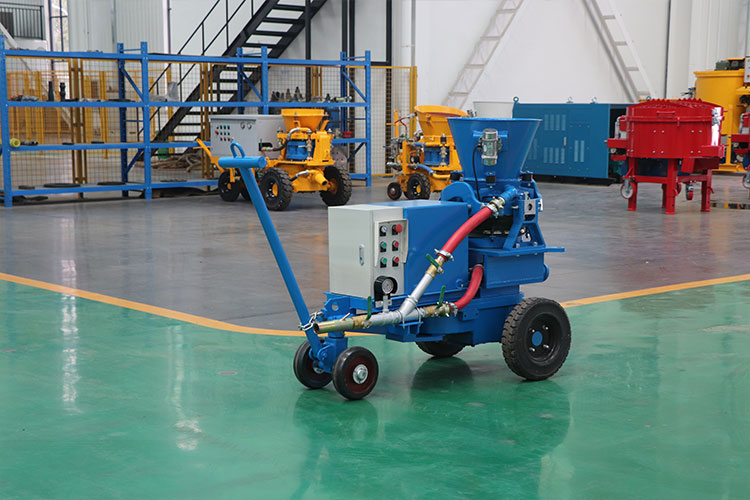

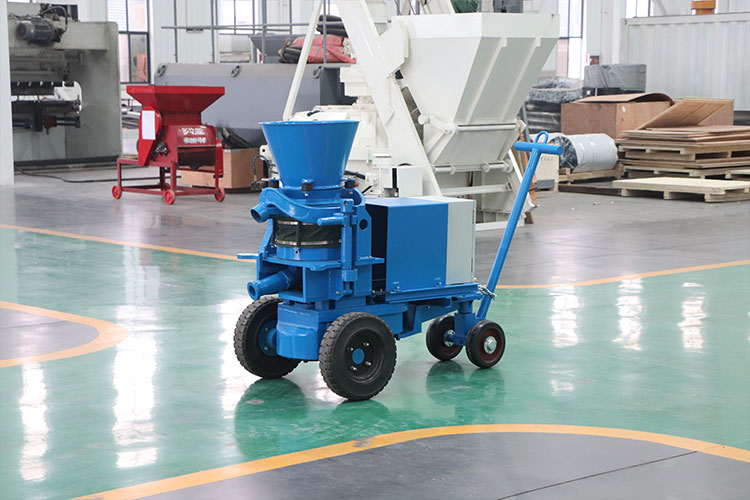

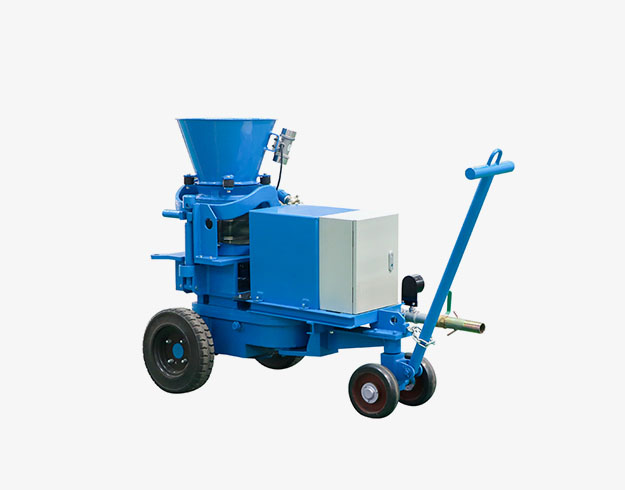

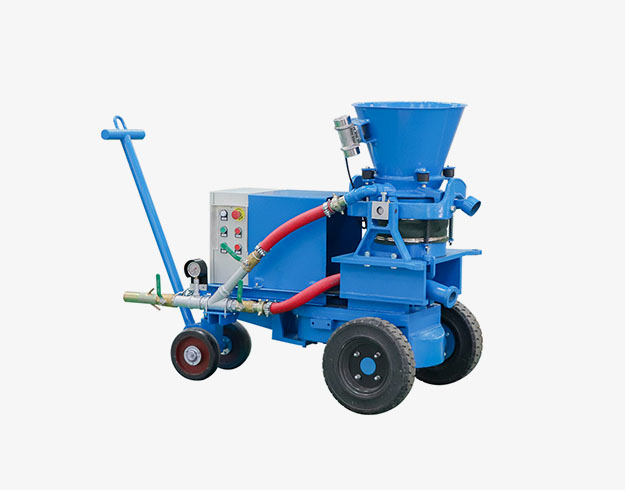

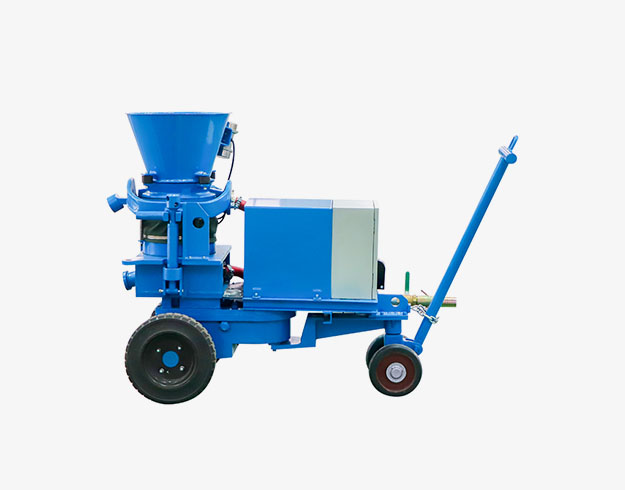

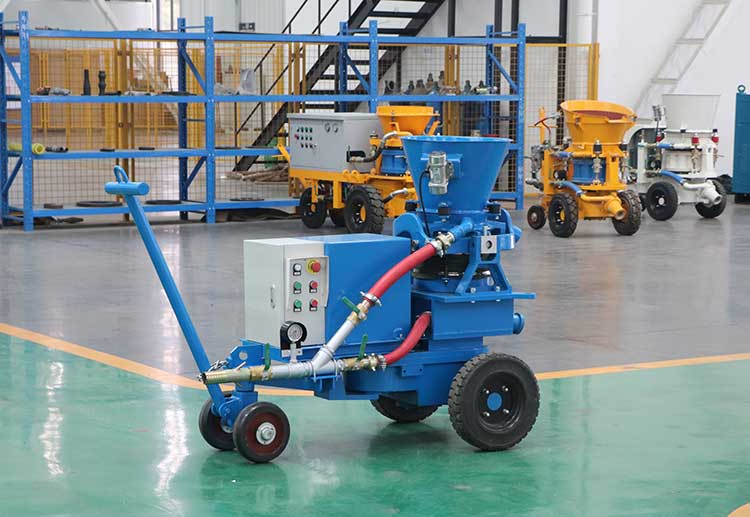

HWZ-3ER/SC Refractory Lining Spraying Machine

HWZ-3ER/SC Refractory Lining Spraying Machine is specifically designed for refractory dry-mix shotcrete applications, utilizing the rotor principle. Its well-proven design makes it extremely robust, easy to set up, simple to operate, most economical, and a safe gunning machine. Various configurations make it the machine of choice for small- to medium-sized applications.

Rated Output:0~3m3/h (0~6tons)

Motor Power:4kw

Operating Air Pressure:0.2-0.4MPa

Voltage:3 phase, 380V, 50Hz

Conveying distance, horizontally:Max. 200m

Send Email

chat now

Share With:

Brief Introduction

Features

Parameters

Detail Part

Application

Shipping

Inquiry

Brief Introduction

Introduction of HWZ-3ER/SC Refractory Lining Spraying Machine

HWZ-3ER/SC Refractory Lining Spraying Machine has the advantages of high construction efficiency, dense and uniform lining, and no seam, which can adapt to various complex working conditions, and can also reduce the shutdown time of equipment, prolong the service life of lining, and reduce energy consumption. It is widely used in metallurgy, building materials, energy and chemical industry, garbage incineration and other high-temperature industrial fields, and is used to build and repair the refractory lining of the inner wall of equipment (such as blast furnace, rotary kiln, and gasifier).

Features

Features of HWZ-3ER/SC Refractory Lining Spraying Machine

HWZ-3ER/SC Refractory Lining Spraying Machine

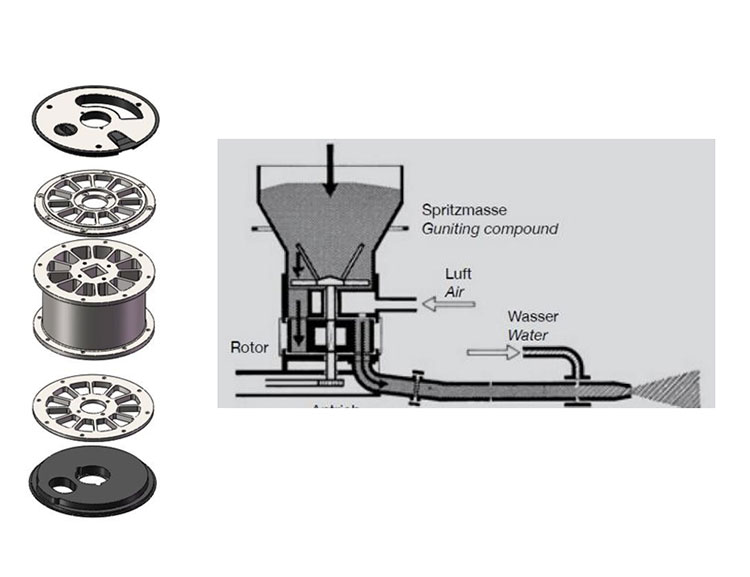

Straight chamber rotor type refractory gunning machine

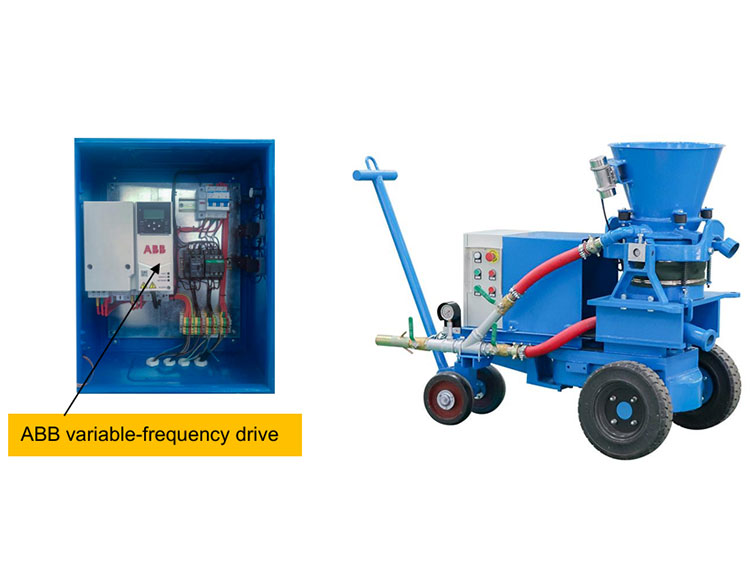

Variable output with a variable-frequency drive to get precise material output control

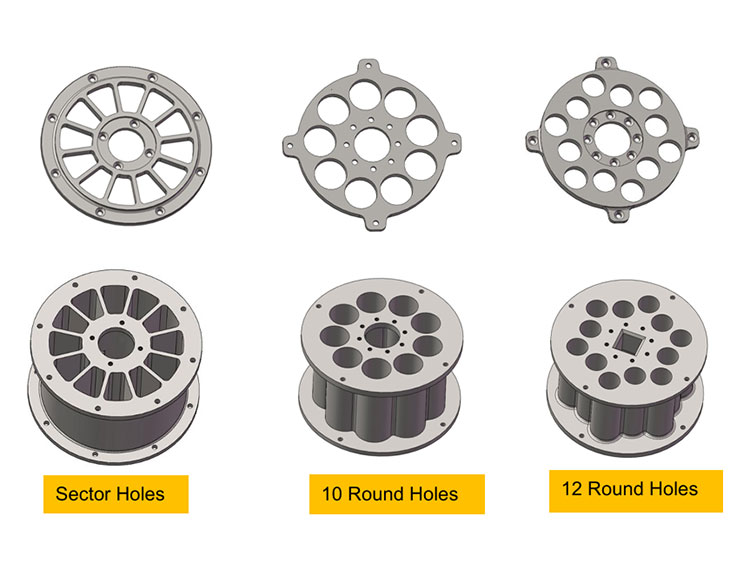

Different rotor body and steel rotor plate for optiont

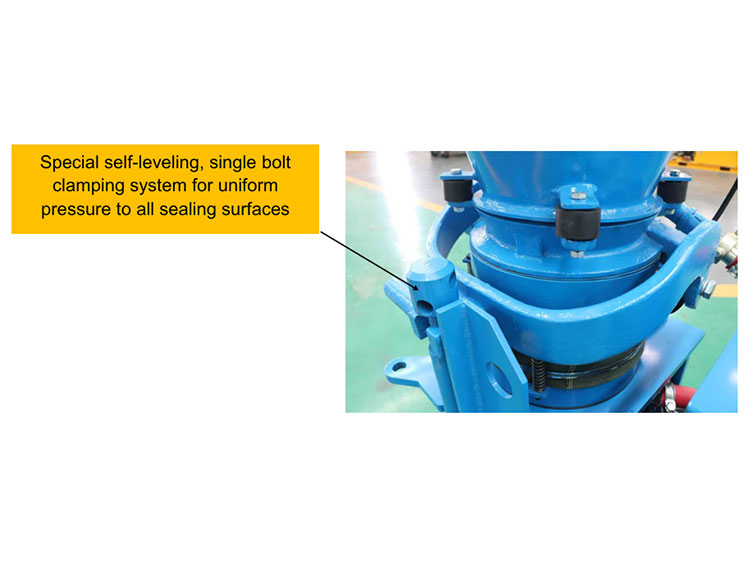

Single bolt clamping system

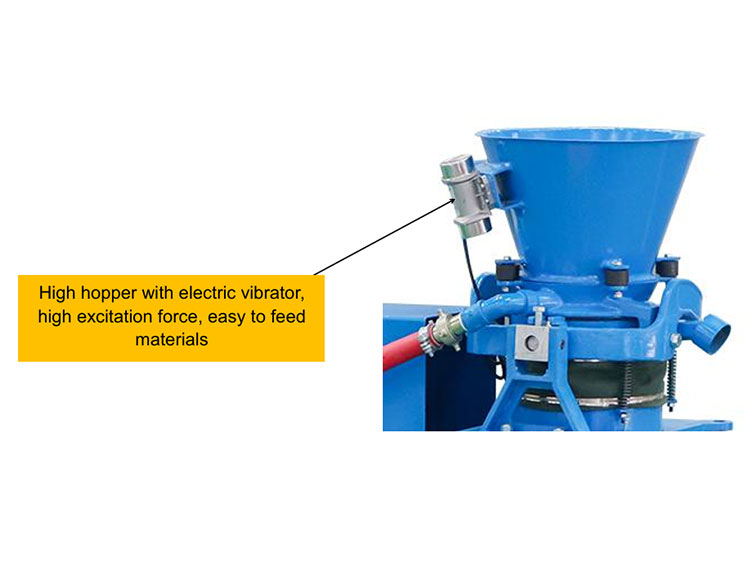

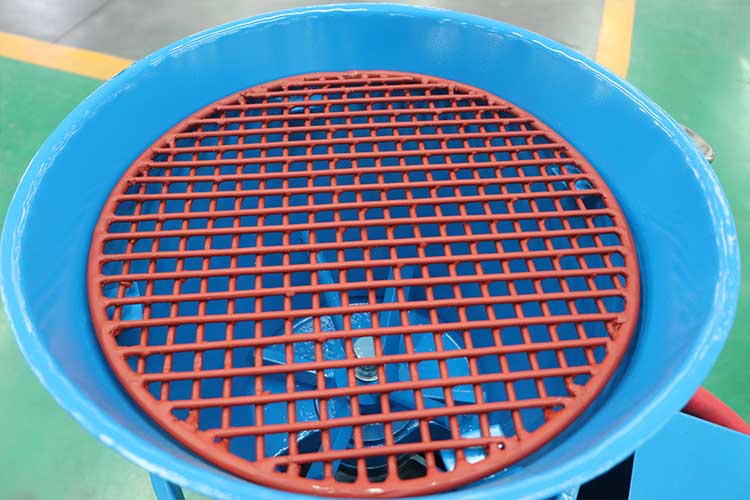

High hopper with electric vibrator

HWZ-3ER/SC Refractory Lining Spraying Machine

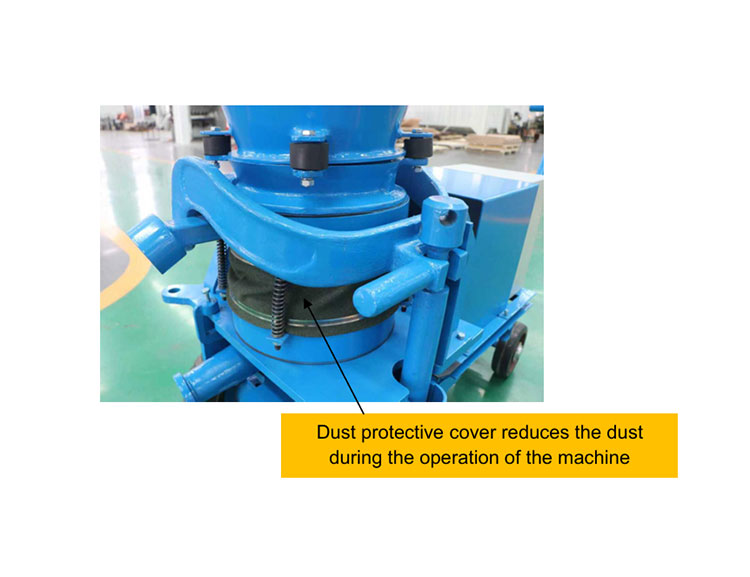

Dust protective cover

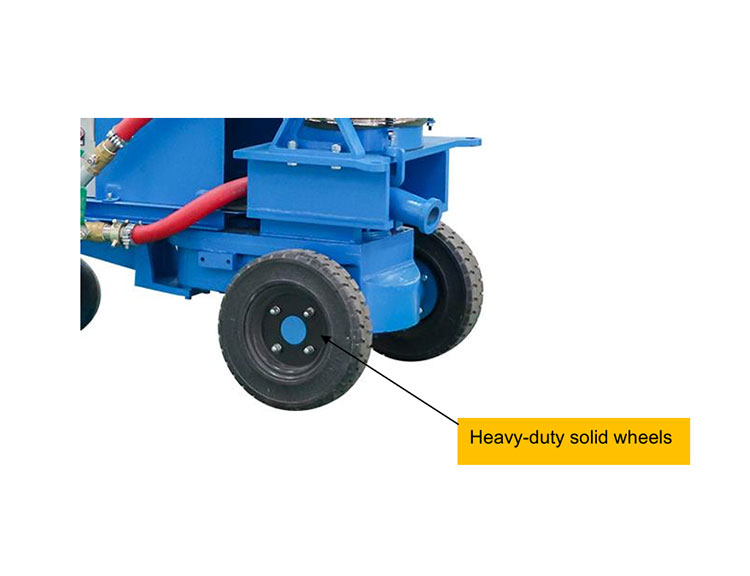

Heavy-duty solid wheels

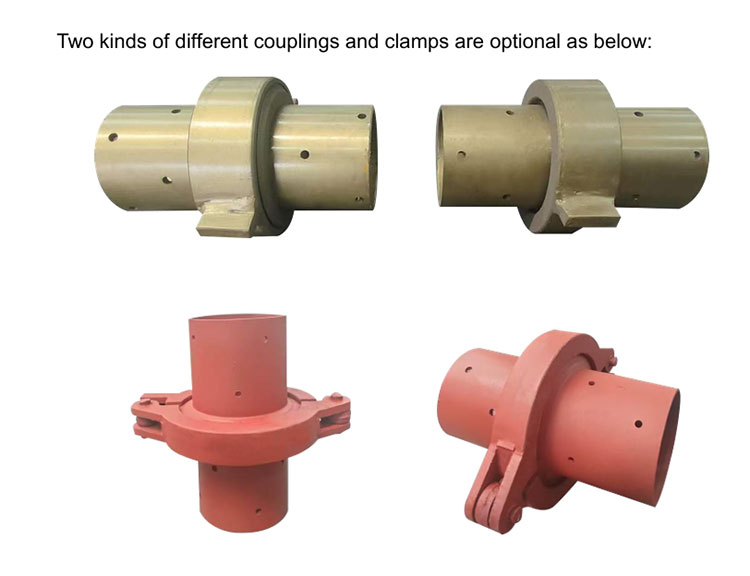

Coupling and clamp

Different lightweight pre-dampening nozzle assembly for the option

Blast rubber hose

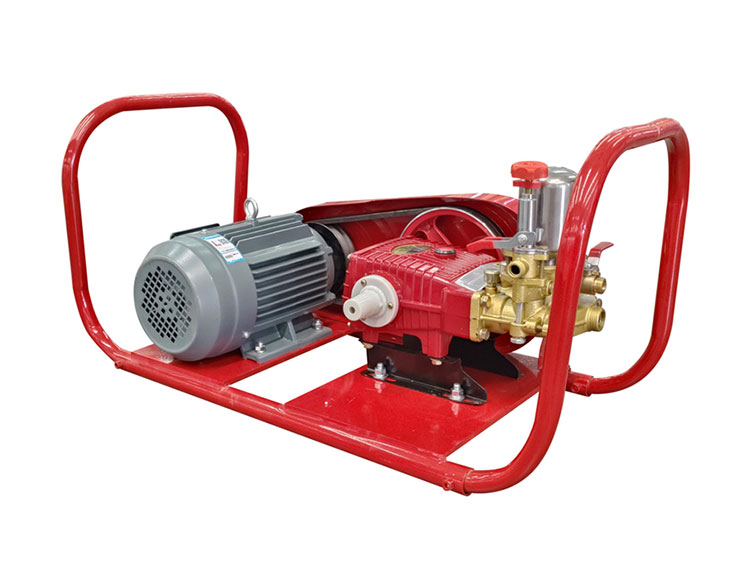

High-pressure water pump, 30bar pressure, make sure to add water fully atomize, mix evenly

Parameters

Parameters of HWZ-3ER/SC Refractory Lining Spraying Machine

$refractory lining gunning machine detail$

Model	HWZ-3ER/SC
Rated Output	0~3m3/h (0~6tons)
Max. Horizontal Conveying Distance	200m
Max. Aggregate Size	Φ10mm
Conveying Hose Inner Diameter	38mm
Operating Air Pressure	0.2-0.4MPa
Air Consumption	5~6m3/min
Motor Power	4kw
Voltage	3 phase, 380V, 50Hz
Material Charging Height	1.2m
Rotor Speed	0-13.2r/min

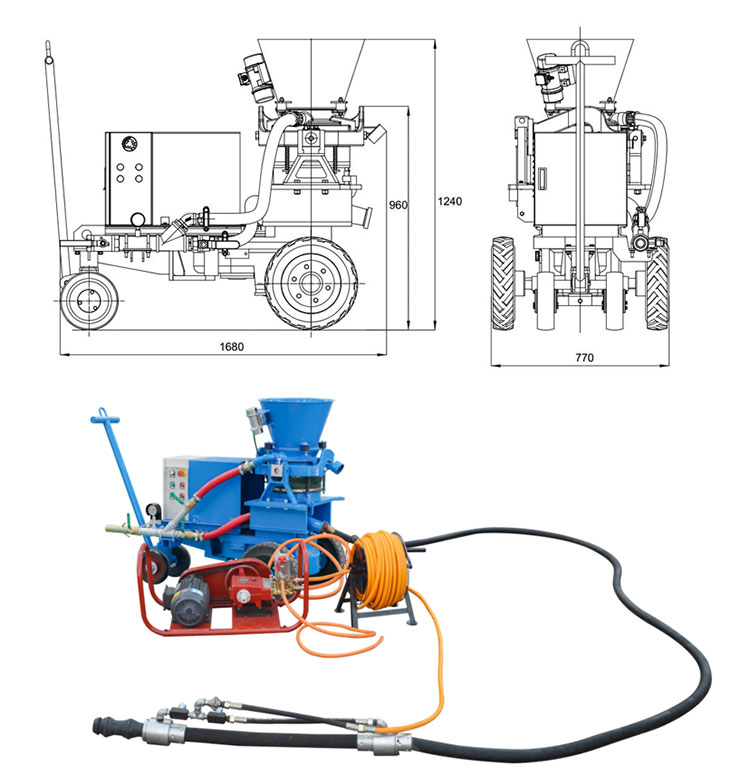

Overall Dimension	1680×770×1240m
Weight	530kg

Detail Part

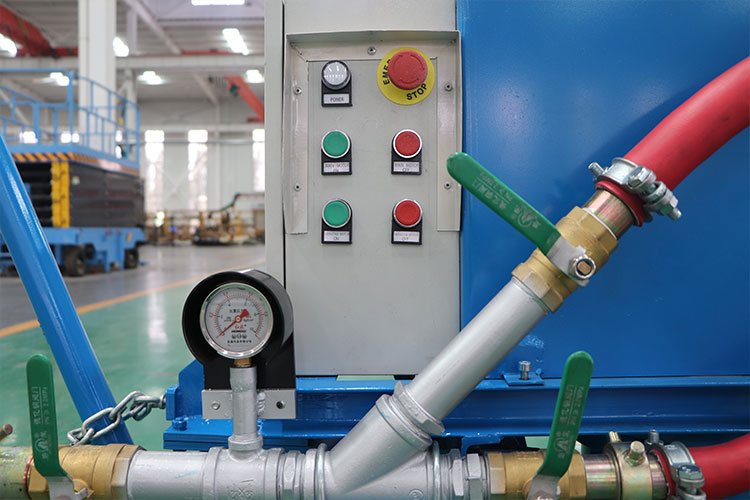

Detail Part of HWZ-3ER/SC Refractory Lining Spraying Machine

Application

Application of HWZ-3ER/SC Refractory Lining Spraying Machine

1. Production and transport of solid and wet concrete mixes and refractory materials. 2. In the metallurgical industry, they are used for the production of pig iron, for concreting nozzles and troughs, and concreting ladles and covers in steel production. 3. In civil engineering, they are often used for pumping concrete for structural foundation slabs and large areas.
