Semi-Dry Mortar Floor Screed Pump

Brief Introduction

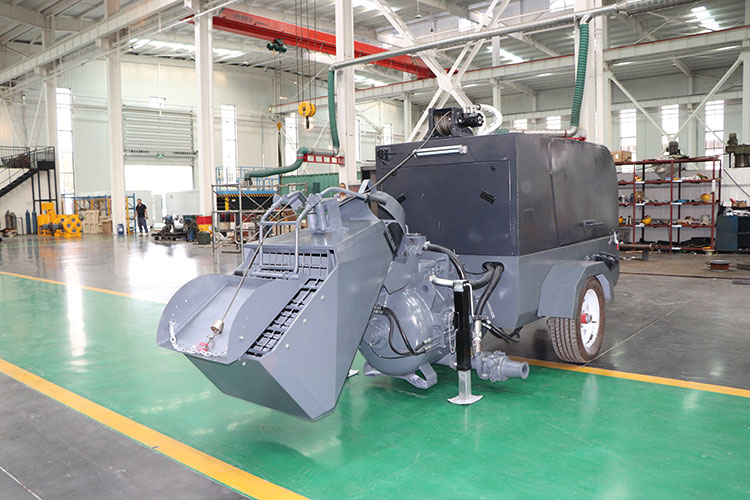

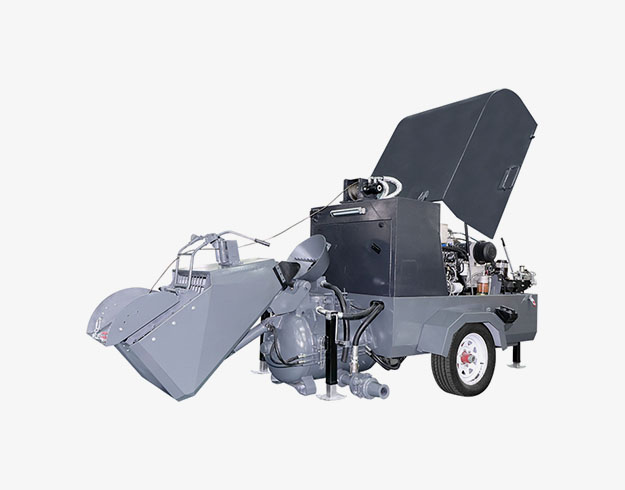

HWPXT200-D/A Semi-Dry Mortar Floor Screed Pump

HWPXT200-D/A Semi-Dry Mortar Floor Screed Pump is designed to provide smooth and reliable power for the continuous conveying of various building materials. Its four-cylinder engine features an optional electronic display for monitoring all vital parameters, and its component layout allows for easy maintenance.

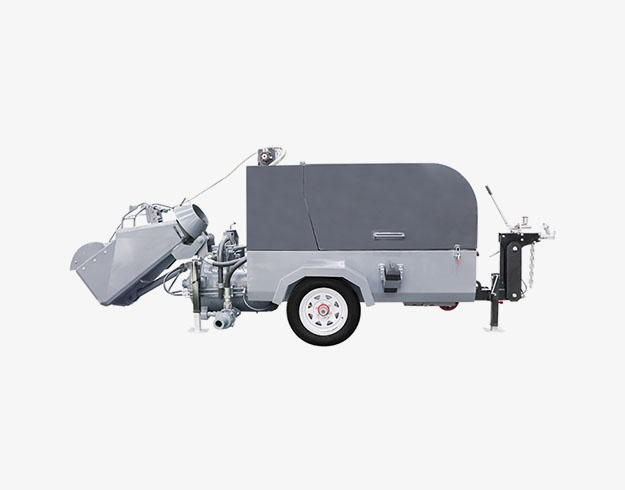

This new mortar conveyor can convey materials horizontally and vertically. Its built-in air compressor generates powerful pressure and airflow, ensuring smooth material conveyance within the working range. By precisely controlling mortar flow and placement thickness, the semi-dry mortar pump ensures uniform screed strength and a smooth surface. This significantly improves construction efficiency, reduces labor intensity, and ensures consistent screed quality, especially in large-scale applications with high flatness requirements.

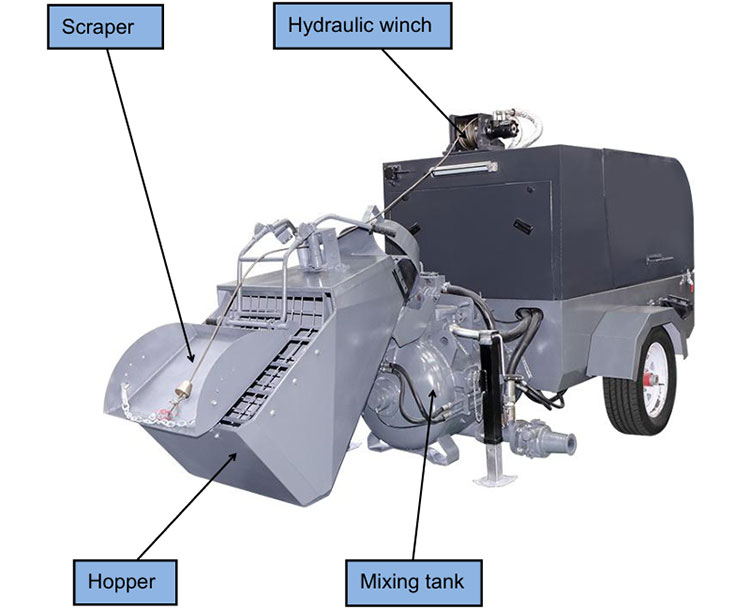

Features

HWPXT200-D/A Semi-Dry Mortar Floor Screed Pump

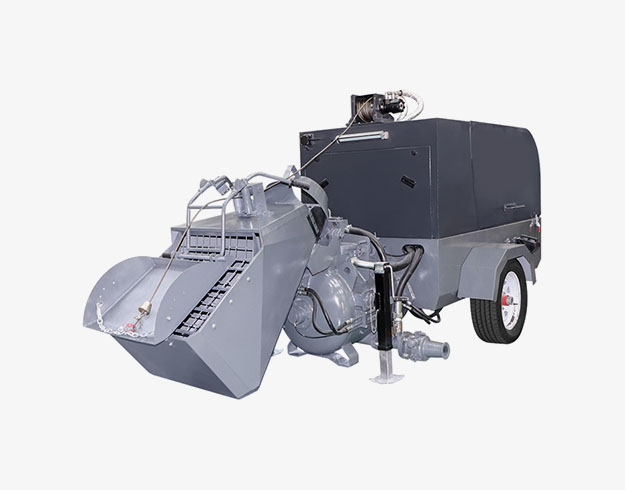

Mortar Mixer and Transfer Machine

60KW diesel engine

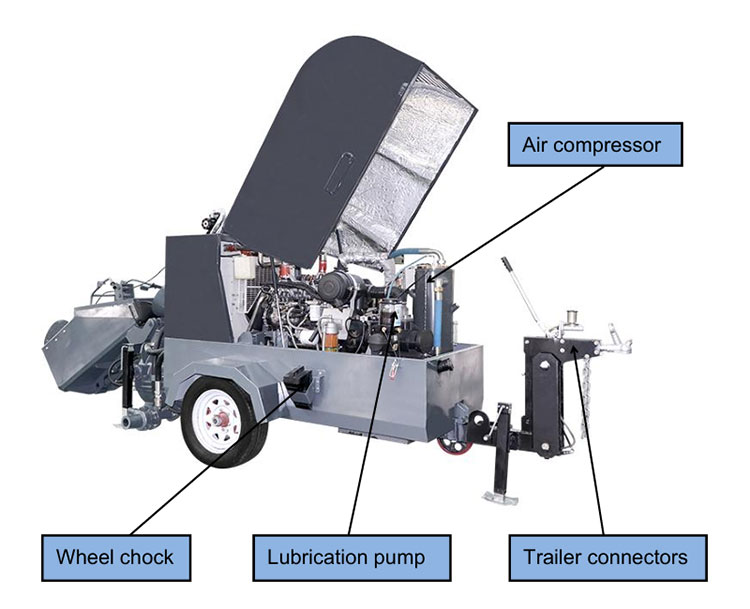

Air compressor and mixer integrated

Adjustable trailer connectors

Replaceable wear-resistant lining plate

Floor Screed Machines

Hydraulic-driven feeding device for easy loading

4 wear-resistant mixing blades

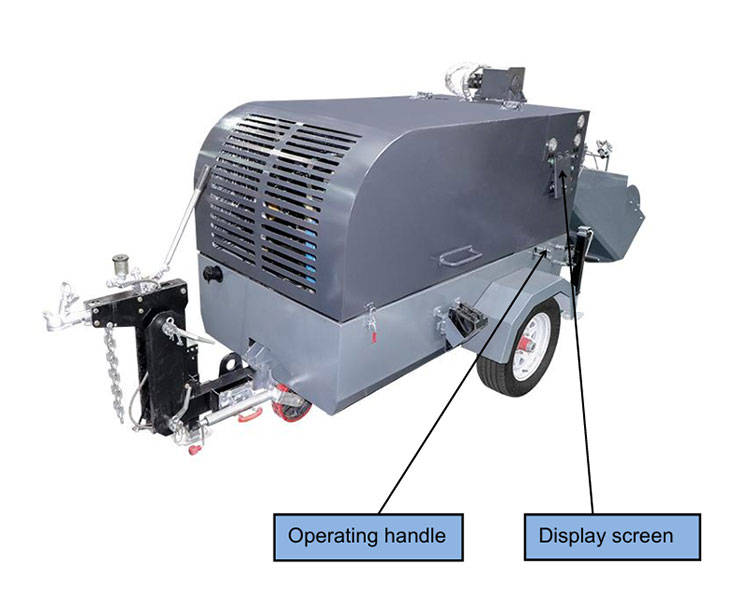

Visual operation parameter display screen

Parameters

Parameters of HWPXT200-D/A Semi-Dry Mortar Floor Screed Pump

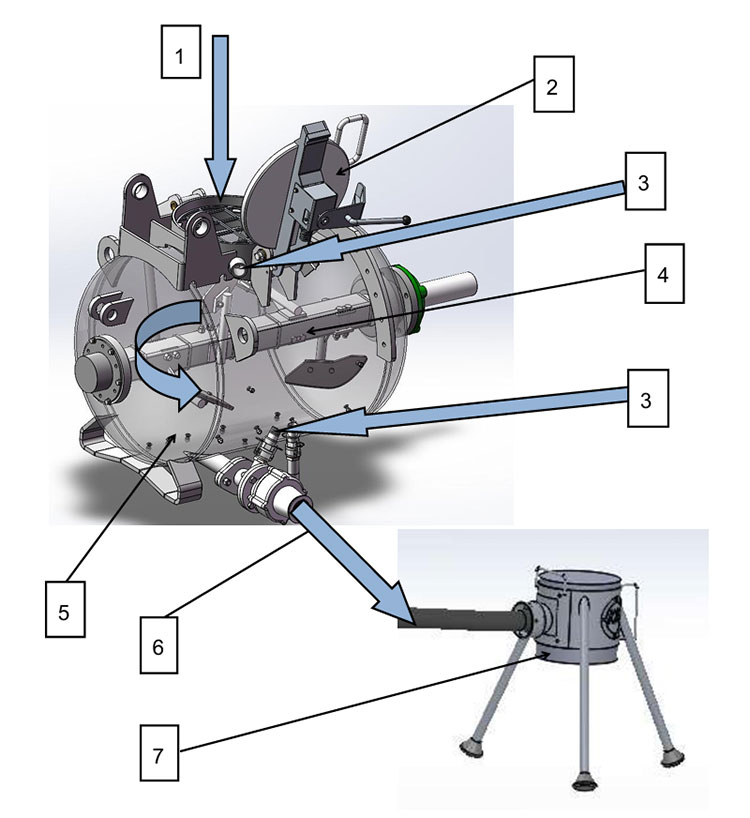

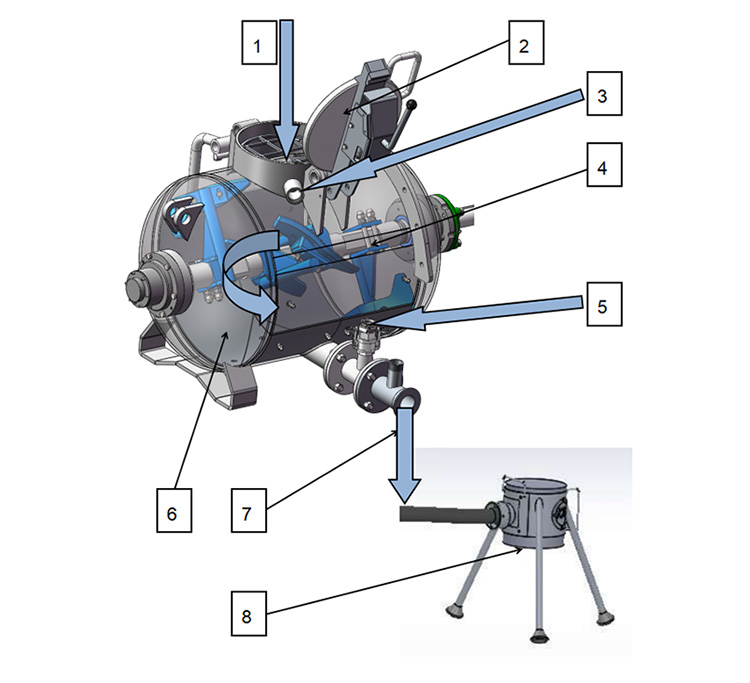

① Add Material 1 to Mixing Tank 5.
② Put on the sealing cover 2 and press it down firmly.
③ The materials are fully stirred in the mixing tank 5.
④The air compressor starts to generate compressed air 3 with sufficient pressure, which enters the mixing drum 5 and the lower pipeline.
⑤The air compressor starts to generate compressed air 3 with sufficient pressure, which enters the mixing drum 5 and the lower pipeline, completing material conveying.

Model	HWPXT200-D/A
Diesel Engine	60KW
Vessel Capacity	Gross 260L / Net 200L
Output Capacity	5m³/h
Transfer Range	Horizontal 220m, Vertical 50 Floor
Operating Pressure	2-4bar
Max. Vessel Pressure	8bar
Compressor Flow Rate	6m³/min
Aggregate Size	16mm
Chassis Tow Connection	Ball Coupling
Fuel Tank	50L
Dimension L×W×H	5320×1700×2000mm
Weight	2415kg

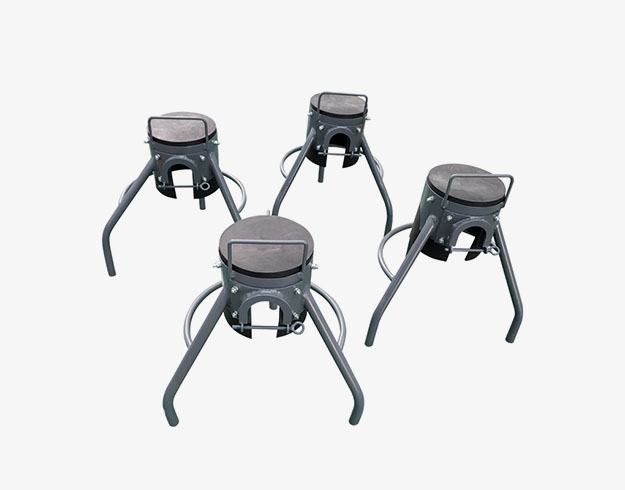

Detail Part

Detail Part of HWPXT200-D/A Semi-Dry Mortar Floor Screed Pump

Application

Application of HWPXT200-D/A Semi-Dry Mortar Floor Screed Pump

HWPXT200-D/A Semi-Dry Mortar Floor Screed Pumps are widely used in leveling operations, suitable for leveling various substrates such as floors, walls, and ceilings. These include laying self-leveling cement bases on residential interiors, screeding before tile laying in commercial spaces, leveling industrial plant floors, and leveling and finishing walls during renovations of existing and new buildings.

Grouting Construction In Deep Foundation Pits, Tunnels, Mines, Water Conservancy Projects And Buildings

Whether in ground reinforcement or underground excavation projects, our full range of jet grouting plant is committed to providing cutting-edge technology and excellent support to ensure our customers can efficiently achieve their project goals.

Industrial Hose Pump For A Paper Mill In Thailand

Industrial hose pumps are used in many key processes of paper mills, including slurry transportation, chemical addition, and wastewater treatment.

$Refractory Gunning Machine For Repairing Of Furnaces$

Refractory Gunning Machine For Repairing Of Furnaces

The refractory gunning machine is widely used in boiler chimneys, kilns, steelmaking furnaces and other industries. Through the high-quality application of refractory materials, the gunning machine has formed a firm and lasting combination with the existing lining, ensuring that the repaired lining can withstand high temperature and harsh conditions for a long time.

Hydroseeding Machine For Slope Protection In Australia

Hydroseeding machine can quickly and massively plant vegetation on slopes. In Australia, the use of hydroseeding machine for slope protection has proved to be a very effective method to prevent erosion.

Packaging

Packaging Display
