Hydraulic High Pressure Grout Pump

Brief Introduction

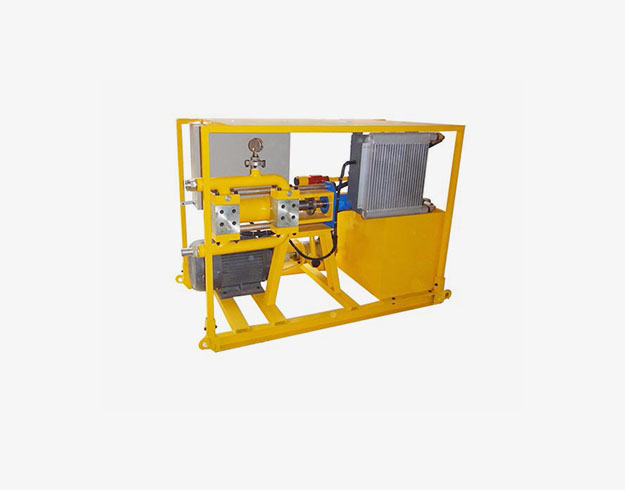

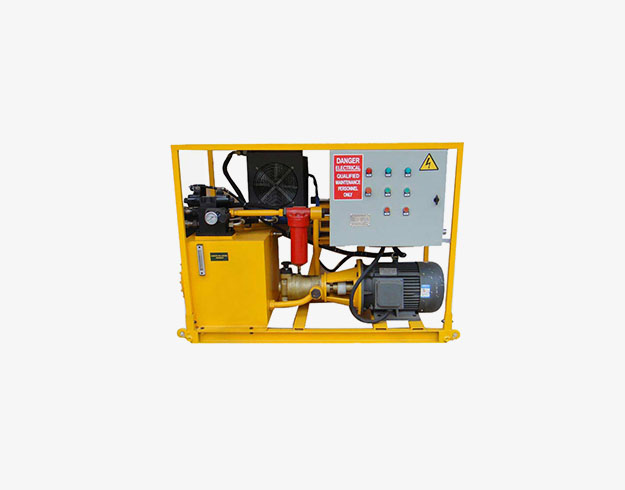

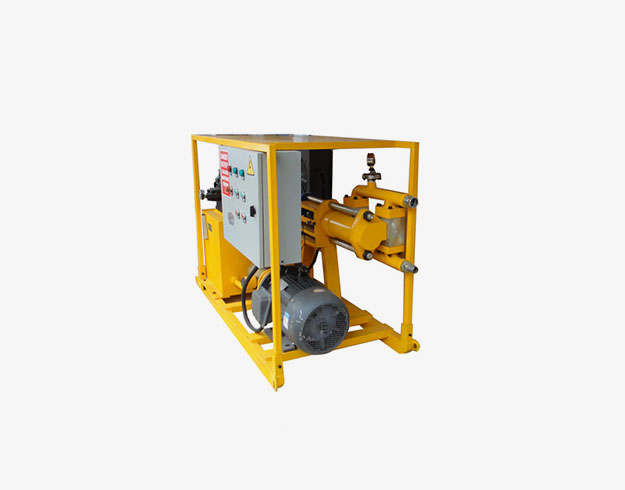

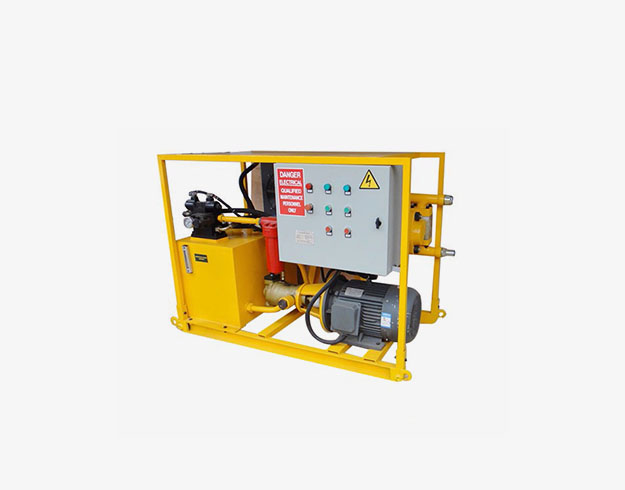

Introduction of HWDH70&90 Hydraulic High Pressure Grout Pump

HWDH70&90 Hydraulic High Pressure Grout Pump has significant advantages in performance and structure. It adopts a single-piston double-acting working mode and is equipped with a reliable hydraulic drive system to ensure stable and efficient operation. At the same time, the overall structure of the equipment is compact, which is convenient for installation and deployment in different construction environments. It is also equipped with a ball valve to further ensure the stability and reliability of the equipment operation.

Features

Features of HWDH70&90 Hydraulic High Pressure Grout Pump

Hydraulic High Pressure Grout Pump

Single piston with double-acting

Hydraulic drive

Hydraulic High Pressure Grout Pump

Compact structure

Ball valve

Parameters

Parameters of HWDH70&90 Hydraulic High Pressure Grout Pump

Item	HWDH70	HWDH90
Rated Output	0-70 L/Min	0-100 L/Min
Rated Pressure	10MPa(1450PSI)	10MPa(1450PSI)
Cylinder Dia.	110mm	110mm
Stroke/Minute	31	45
Inlet Dia.	38mm	38mm
Outlet Dia.	32mm	32mm
Power Unit	7.5kW	11kW
Transmission	Hydraulic drive	Hydraulic drive
Chassis	Skid	Skid
Weight	450Kg	580Kg
Overall Dimension	1505x770x1110mm	1505x770x1110mm
Note: Single or Double Passageway is optional; Chassis: Skid or Tyre

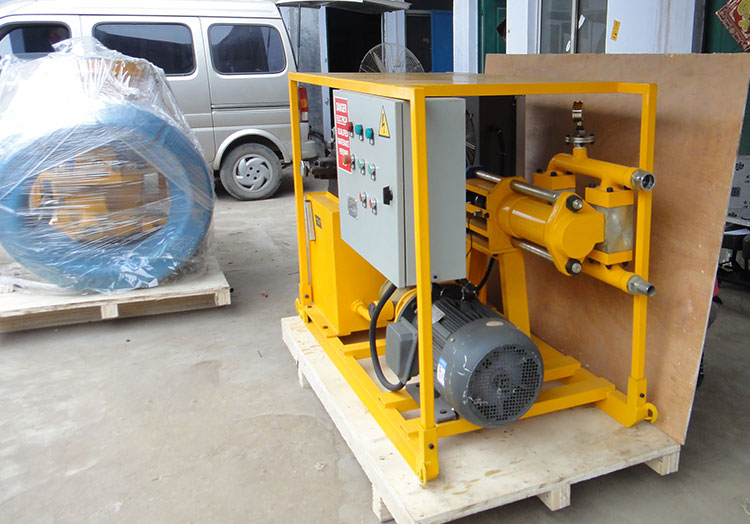

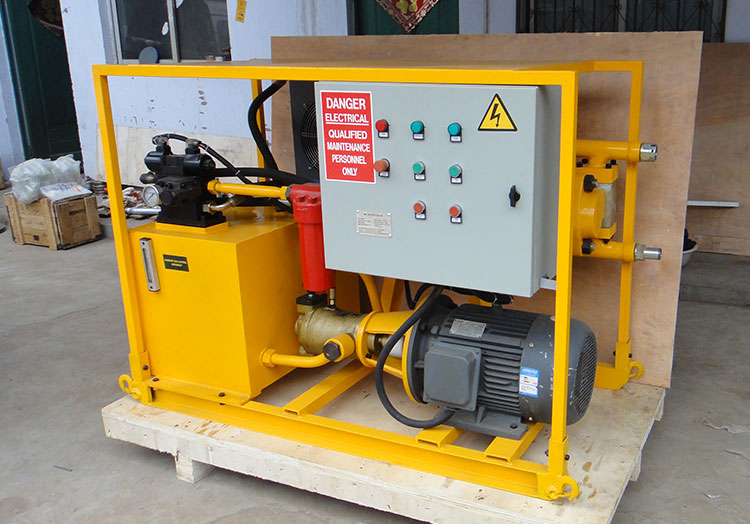

Detail Part

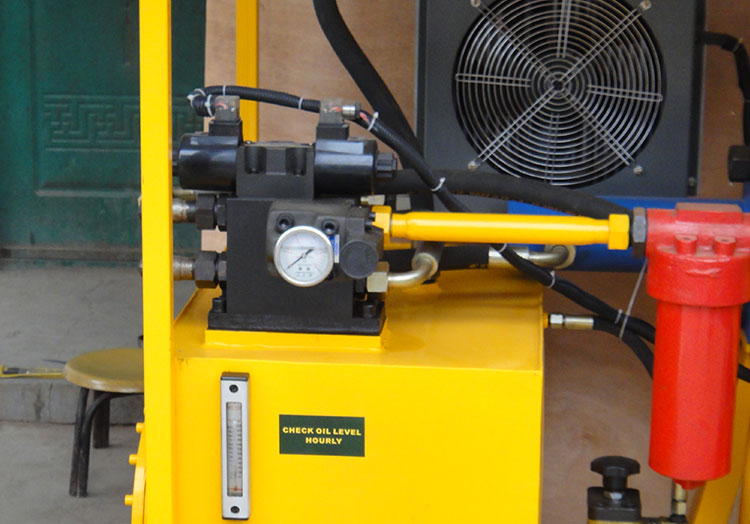

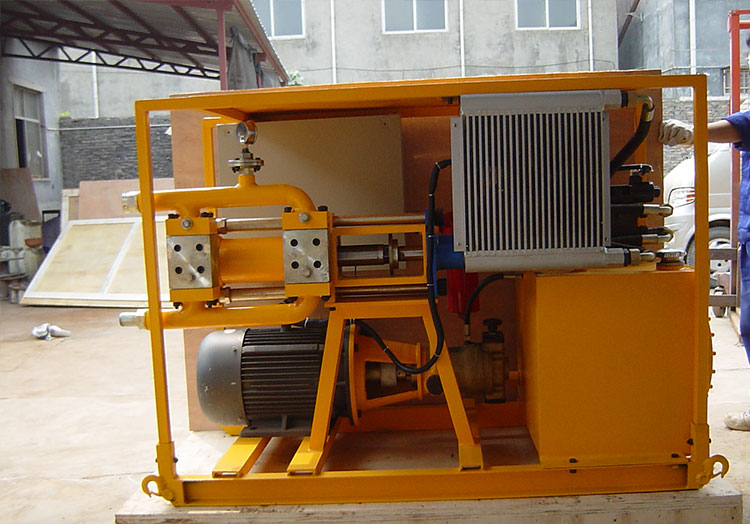

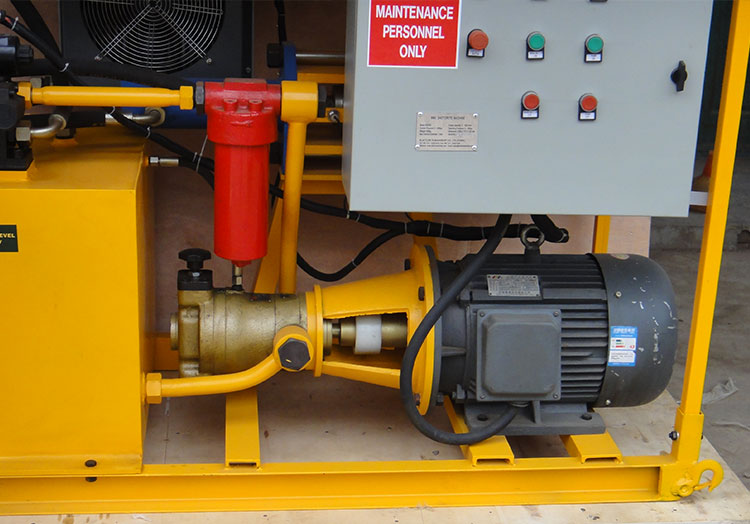

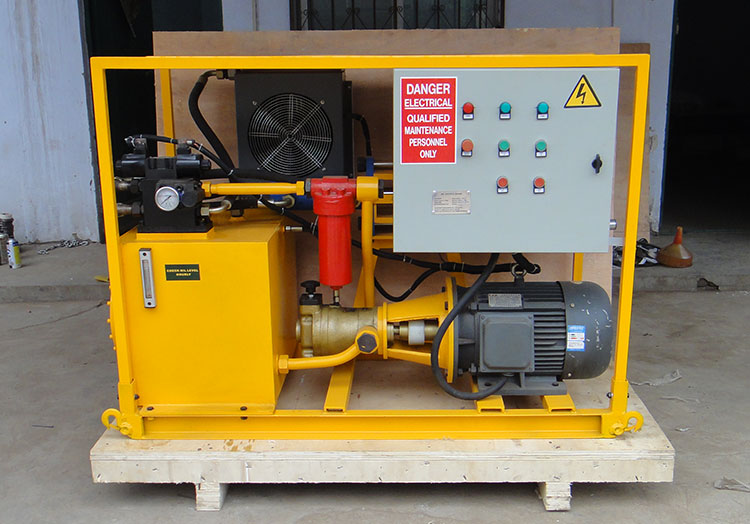

Detail Part of HWDH70&90 Hydraulic High Pressure Grout Pump

Application

Application of HWDH70&90 Hydraulic High Pressure Grout Pump

HWDH70&90 Hydraulic High Pressure Grout Pump is a versatile high-pressure grouting pump used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, and other applications.

Hydroseeding Machine For Slope Protection In Australia

Hydroseeding machine can quickly and massively plant vegetation on slopes. In Australia, the use of hydroseeding machine for slope protection has proved to be a very effective method to prevent erosion.

$Refractory Gunning Machine For Repairing Of Furnaces$

Refractory Gunning Machine For Repairing Of Furnaces

The refractory gunning machine is widely used in boiler chimneys, kilns, steelmaking furnaces and other industries. Through the high-quality application of refractory materials, the gunning machine has formed a firm and lasting combination with the existing lining, ensuring that the repaired lining can withstand high temperature and harsh conditions for a long time.

Industrial Hose Pump For A Paper Mill In Thailand

Industrial hose pumps are used in many key processes of paper mills, including slurry transportation, chemical addition, and wastewater treatment.

Grouting Construction In Deep Foundation Pits, Tunnels, Mines, Water Conservancy Projects And Buildings

Whether in ground reinforcement or underground excavation projects, our full range of jet grouting plant is committed to providing cutting-edge technology and excellent support to ensure our customers can efficiently achieve their project goals.

Packaging

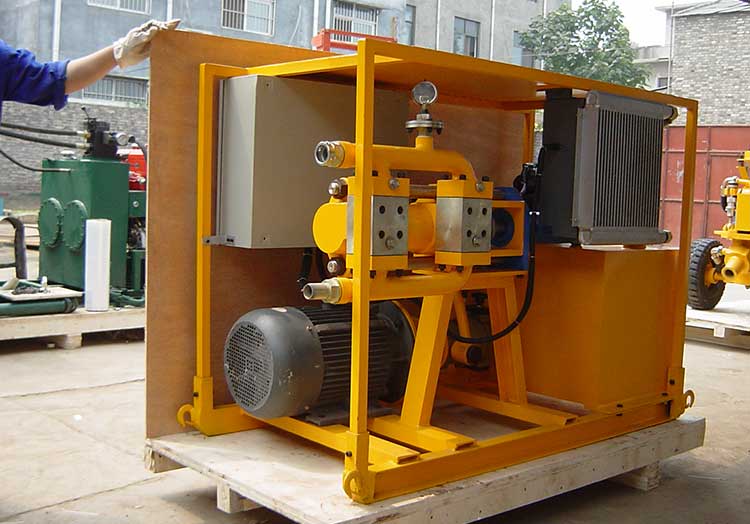

Packaging Display
