horizontal slurry grouting pump

Brief Introduction

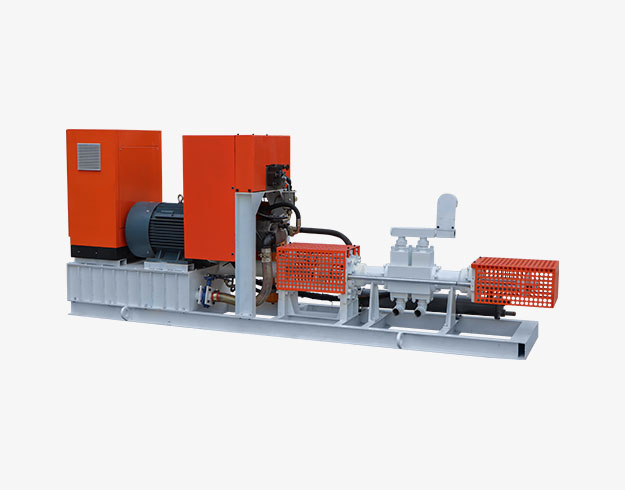

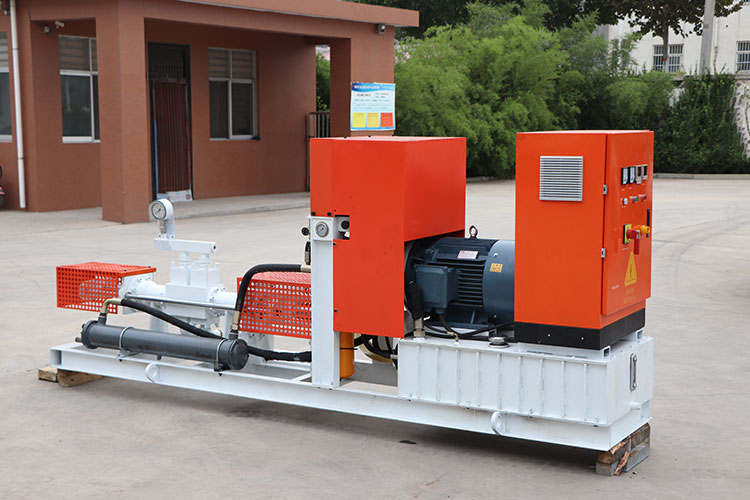

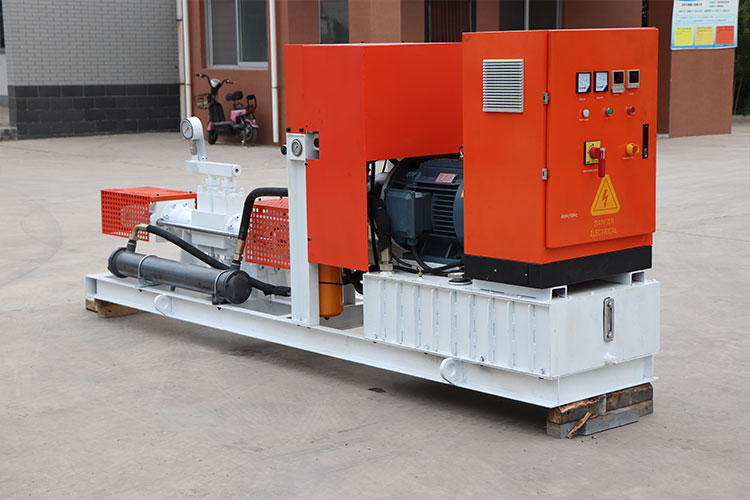

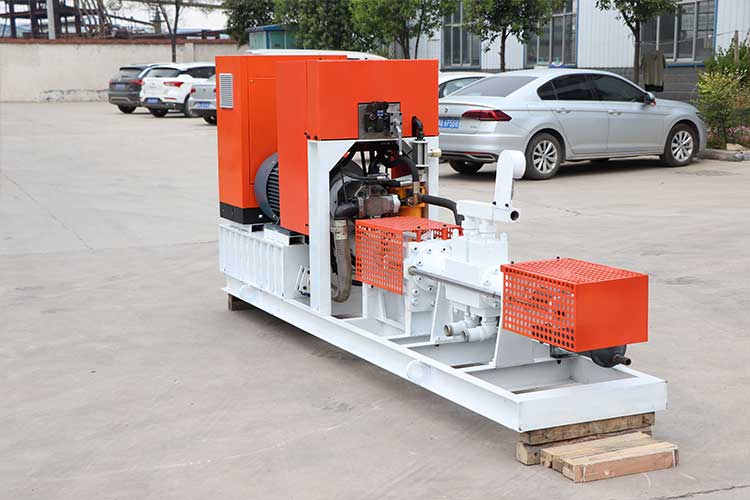

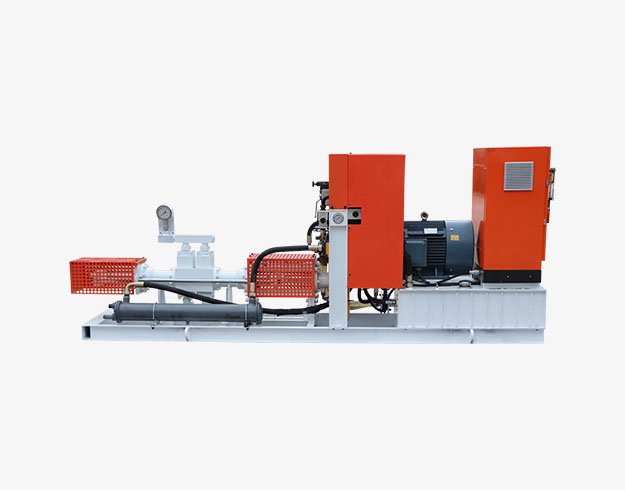

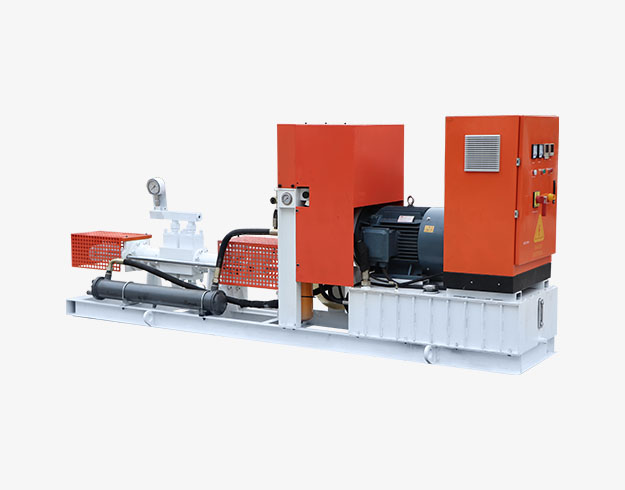

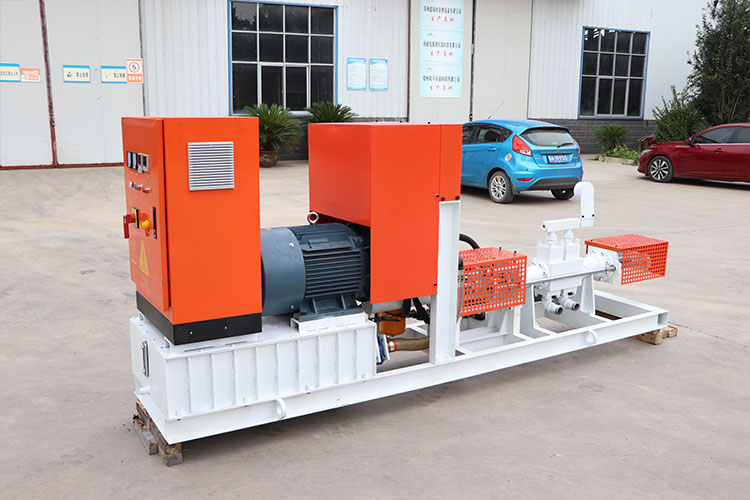

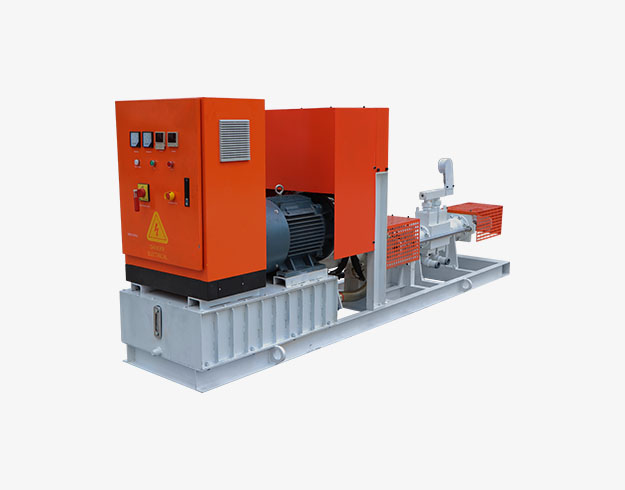

Introduction of HWGP95/165PL-E Horizontal Slurry Grouting Pump

HWGP95/165PL-E Horizontal Slurry Grouting Pump adopts two pieces of Pressure Plungers to stabilize the consistency of the grouting flow. Grouting pressure and displacement are stepless adjustable. Compact size and is easy to operate. It also takes up a small space.

Features

Features of HWGP95/165PL-E Horizontal Slurry Grouting Pump

High Pressure Horizontal Grouting Pump

Grouting pressure, displacement is step-less adjustable

Simple structure, lightweight, easy maintenance

Double grouting plungers, continuous output flow with less pulse

Fewer spare parts ensure low maintenance costs

High Pressure Horizontal Grouting Pump

With the function of recording and displaying grouting pump reciprocating times by a counter

The motor has an overload protection function. Hydraulic system with oil temperature overheating protection

Electric motor and hydraulic driven. Whenever overpressure occurs, the hydraulic safety protection will be activated

Parameters

Parameters of HWGP95/165PL-E Horizontal Slurry Grouting Pump

Type	HWGP95/165PL-E
Plunger diameter	85mm
Plunger stroke	300mm
Adjustable pressure	0-16.5MPa
Adjustable flow rate	0-95L/min
Discharge pipe size	G1 1/4＂
Inlet pipe size	G2＂
Oil tank	200L
Power Unit	37Kw,3-400V,50Hz
Max. grain size	2mm
Working pressure	16.5MPa
Weight	1400kg
Overall dimensions	3760x1480x750mm
We could also according to your demands to customize

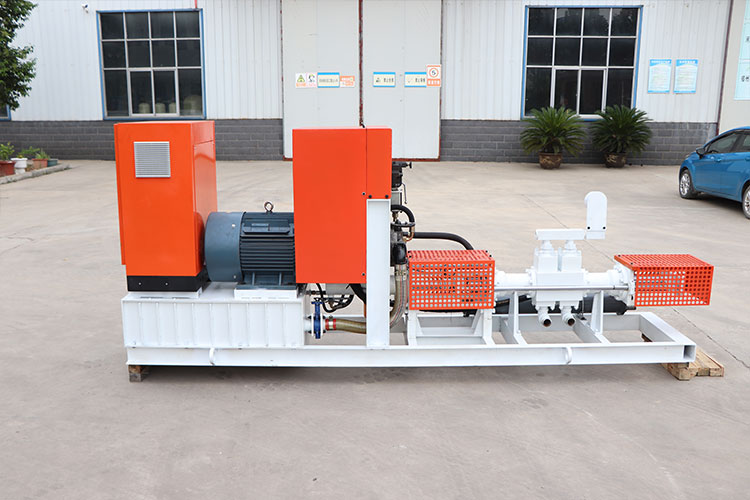

Detail Part

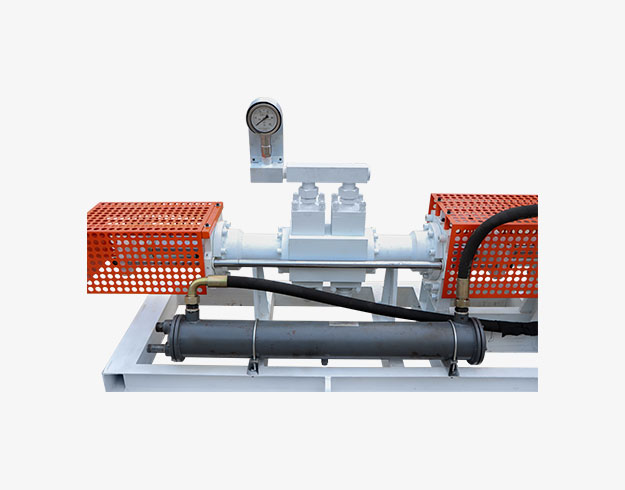

Detail Part of HWGP95/165PL-E Horizontal Slurry Grouting Pump

Application

Application of HWGP95/165PL-E Horizontal Slurry Grouting Pump

HWGP95/165PL-E Horizontal Slurry Grouting Pump is used in many fields, such as dam foundation and tunnel in civil engineering, building restoration and foundation reinforcement in structural engineering, pavement sealing in construction, underwater foundation in ocean, tunnel lining in mining, waterproofing of public facilities, and grouting of deep well casing in geotechnical engineering.

Hydroseeding Machine For Slope Protection In Australia

Hydroseeding machine can quickly and massively plant vegetation on slopes. In Australia, the use of hydroseeding machine for slope protection has proved to be a very effective method to prevent erosion.

Grouting Construction In Deep Foundation Pits, Tunnels, Mines, Water Conservancy Projects And Buildings

Whether in ground reinforcement or underground excavation projects, our full range of jet grouting plant is committed to providing cutting-edge technology and excellent support to ensure our customers can efficiently achieve their project goals.

Industrial Hose Pump For A Paper Mill In Thailand

Industrial hose pumps are used in many key processes of paper mills, including slurry transportation, chemical addition, and wastewater treatment.

$Refractory Gunning Machine For Repairing Of Furnaces$

Refractory Gunning Machine For Repairing Of Furnaces

The refractory gunning machine is widely used in boiler chimneys, kilns, steelmaking furnaces and other industries. Through the high-quality application of refractory materials, the gunning machine has formed a firm and lasting combination with the existing lining, ensuring that the repaired lining can withstand high temperature and harsh conditions for a long time.

Packaging

Packaging Display

Products

Recommend Relevant Products

HWDH70&90 Hydraulic High Pressure Grout Pump

Rated pressure:10MPa(1450PSI)

Power:7.5kW&11kW

chat now

HWGM50/80PLD-E Double-Plunger Hydraulic Grout Pump

Rated pressure:0-50 Bar

Power:11kW

chat now

HWGP440/50PI-22E High Pressure Horizontal Grouting Pump

Power:22 Kw

Pump speed:214 r/min

chat now

HWGP114/500-120D Diesel-driven High-pressure Jet-Grouting Pump

Diesel engine Type:QSF4.5 Cummins

Power:120 Kw

chat now

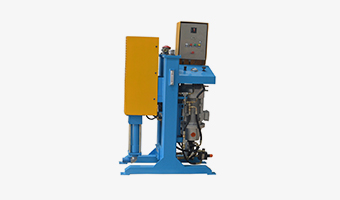

HWDH75/100 PI-E High Pressure Vertical Grouting Pump
