Double-Plunger Hydraulic Grout Pump

Brief Introduction

Introduction of HWGM50/80PLD-E Double-Plunger Hydraulic Grout Pump

This HWGM50/80PLD-E Double-Plunger Hydraulic Grout Pump is suitable for all grouting work, including the pumping of backfill mortar behind tunnel liners, grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, and slope line grouting, among others.

Features

Features of HWGM50/80PLD-E Double-Plunger Hydraulic Grout Pump

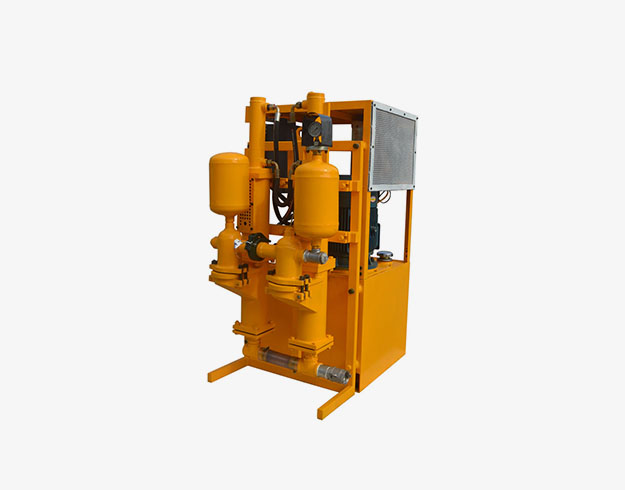

Double-Plunger Hydraulic Grout Pump

The plunger system does not require any close-tolerance parts such as cylinders or precise piston seals, etc. The plunger is sealed by a simple, maintenance-free seal.

Double Plungers and acting

Vertical type pump with compact size

Hydraulic drive. Safely releasing pressure when pumping the block

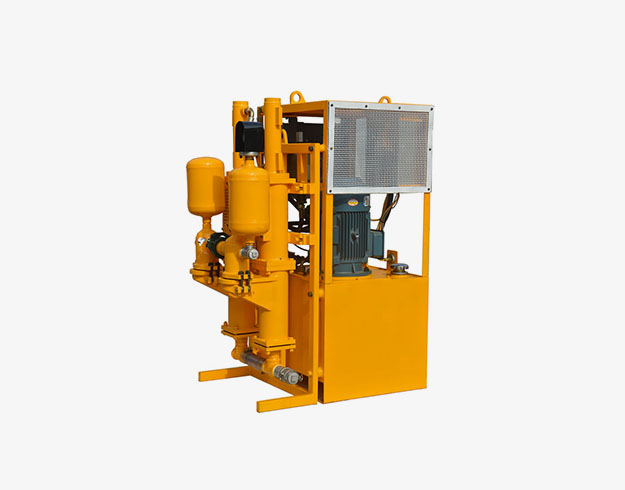

Double-Plunger Hydraulic Grout Pump

Ball valve

Up to 8mm particle size

Low wear plunger system

Low-flow pressure surge system

Parameters

Parameters of HWGM50/80PLD-E Double-Plunger Hydraulic Grout Pump

Item	HWGM50/80PLD-E
Rated Output	0-80 L/Min
Rated Pressure	0-50 Bar
W/C ratio	≥0.5:1
Plunger Dia.	85mm
Stroke	190mm
Inlet Dia.	2’’
Outlet Dia.	BSP1.5’’
Power Unit	11kW
Transmission	Hydraulic drive
Max. particle size	8mm
Chassis	Skid
Note: Double cylinders double plunger vertical type pump. Pressure and flow could be adjusted steplessly

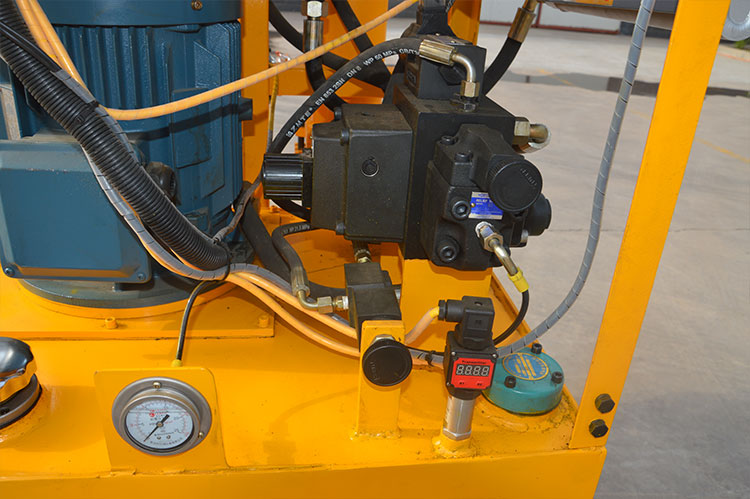

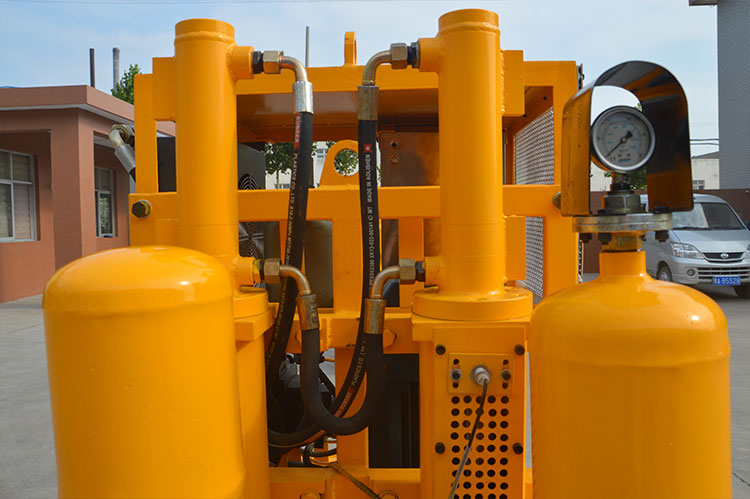

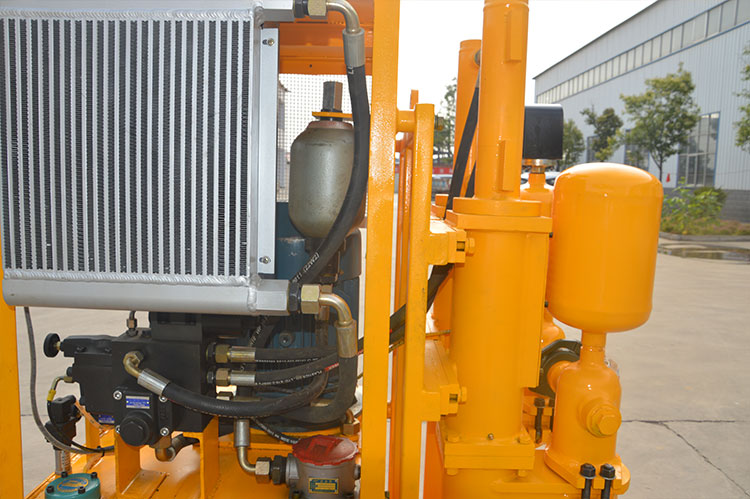

Detail Part

Detail Part of HWGM50/80PLD-E Double-Plunger Hydraulic Grout Pump

Application

Application of HWGM50/80PLD-E Double-Plunger Hydraulic Grout Pump

HWGM50/80PLD-E Double-Plunger Hydraulic Grout Pump is widely used in engineering due to its stable output and flexible displacement adjustment. They are widely used in water conservancy and hydropower projects to construct anti-seepage curtains for dams and hydropower station foundations, reinforce foundations to block water seepage, and prevent subsidence. They can also be used in building foundation projects for high-pressure grouting of soft soil foundations and foundation pit enclosures, improving foundation bearing capacity and structural stability. They are also used in transportation projects to reinforce bridge supports, prevent seepage in tunnel linings, and seal well walls and fill goaf in mining projects. They are core equipment for solving key engineering problems such as foundation reinforcement, anti-seepage and leak-proofing, and structural reinforcement.

Industrial Hose Pump For A Paper Mill In Thailand

Industrial hose pumps are used in many key processes of paper mills, including slurry transportation, chemical addition, and wastewater treatment.

Hydroseeding Machine For Slope Protection In Australia

Hydroseeding machine can quickly and massively plant vegetation on slopes. In Australia, the use of hydroseeding machine for slope protection has proved to be a very effective method to prevent erosion.

$Refractory Gunning Machine For Repairing Of Furnaces$

Refractory Gunning Machine For Repairing Of Furnaces

The refractory gunning machine is widely used in boiler chimneys, kilns, steelmaking furnaces and other industries. Through the high-quality application of refractory materials, the gunning machine has formed a firm and lasting combination with the existing lining, ensuring that the repaired lining can withstand high temperature and harsh conditions for a long time.

Grouting Construction In Deep Foundation Pits, Tunnels, Mines, Water Conservancy Projects And Buildings

Whether in ground reinforcement or underground excavation projects, our full range of jet grouting plant is committed to providing cutting-edge technology and excellent support to ensure our customers can efficiently achieve their project goals.

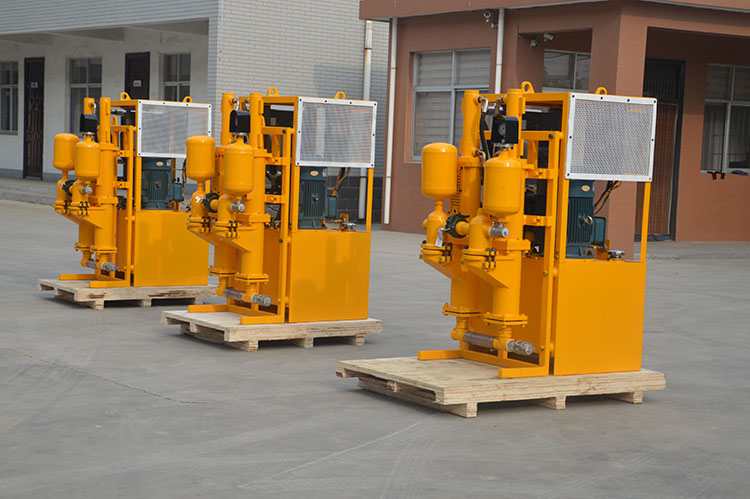

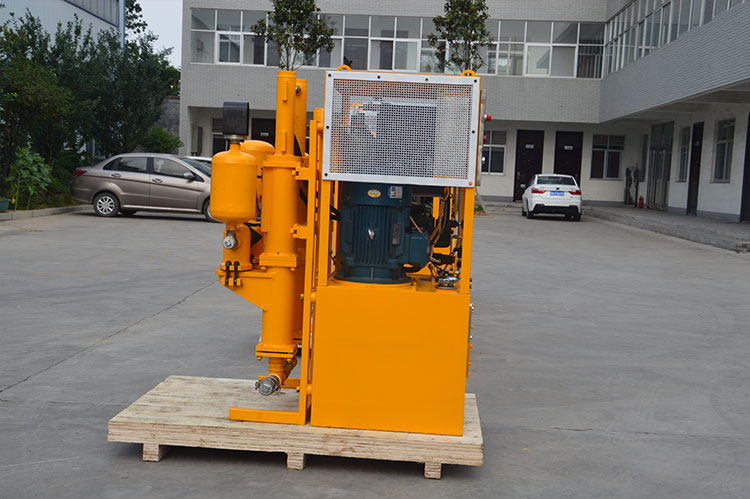

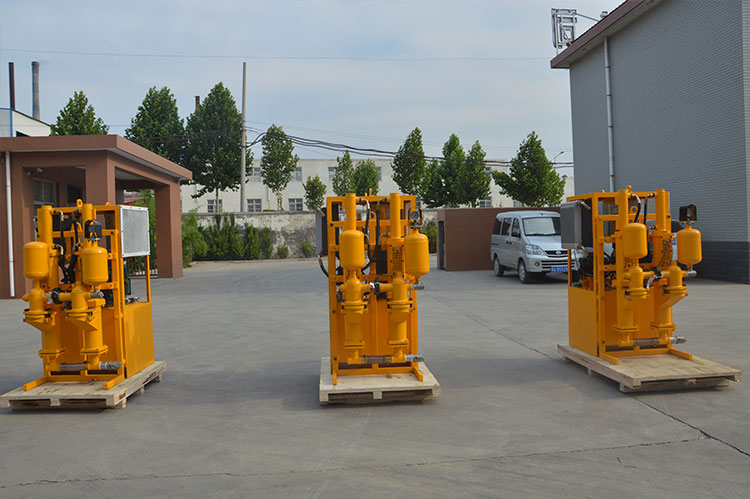

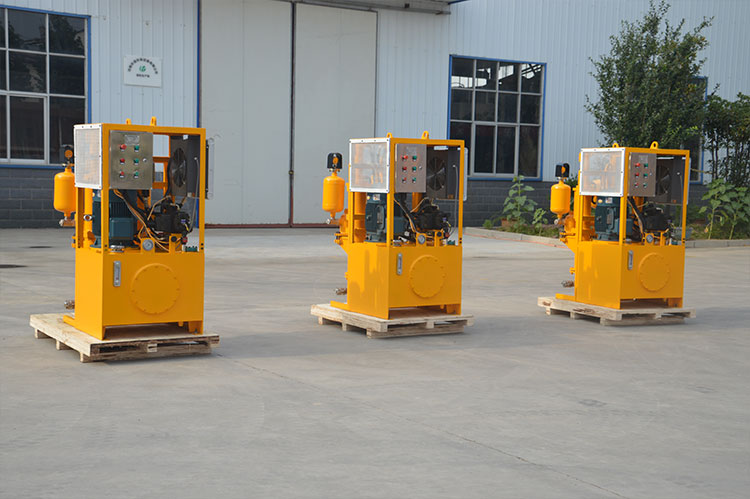

Packaging
