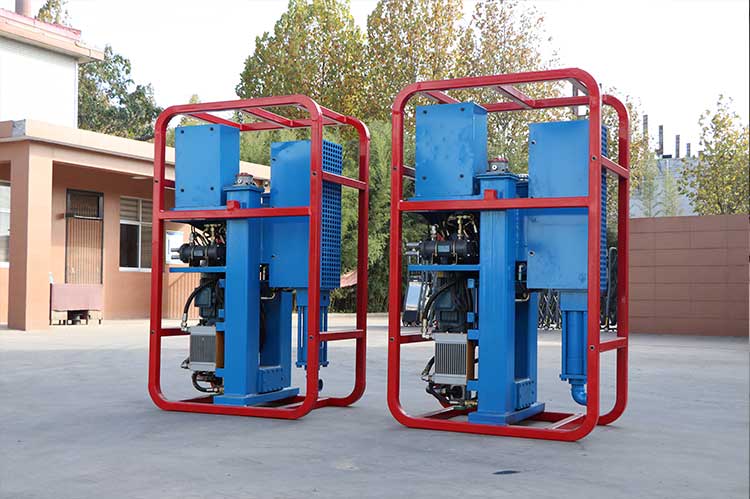

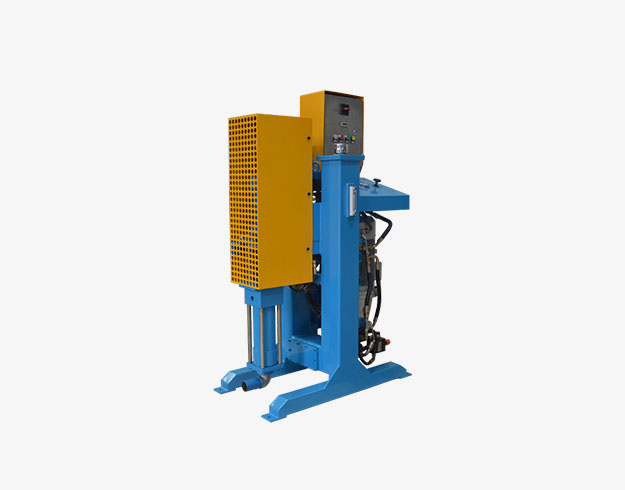

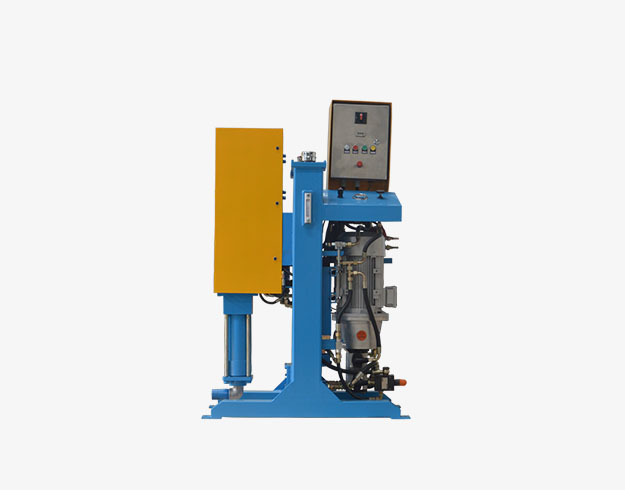

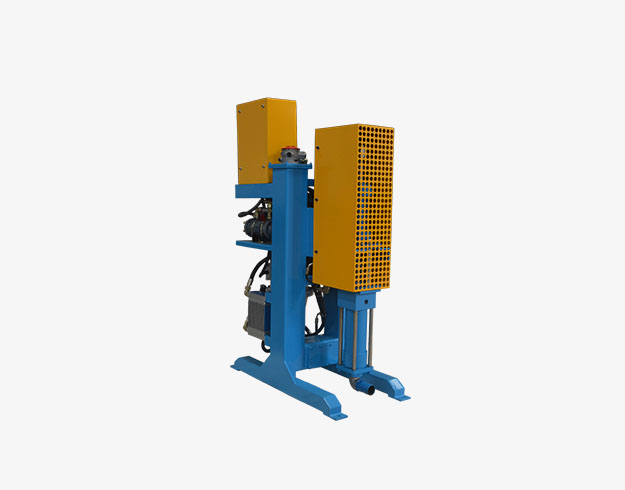

High Pressure Vertical Grouting Pump

Brief Introduction

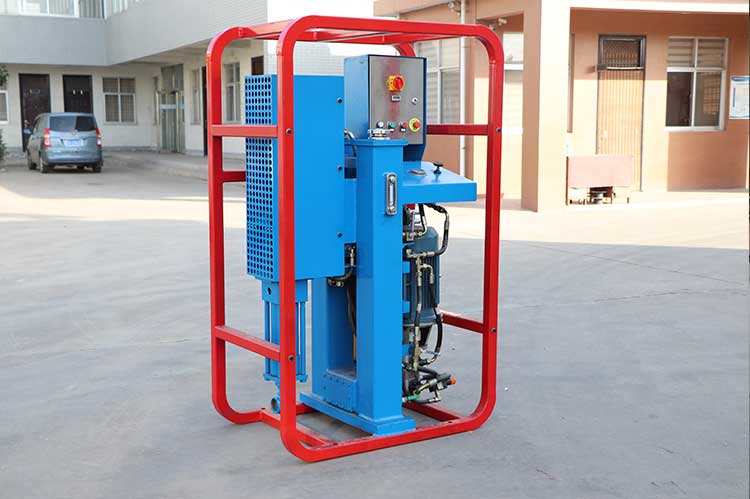

Introduction of HWDH75/100 PI-E High Pressure Vertical Grouting Pump

HWDH75/100 PI-E high-pressure vertical grouting pump is widely used in many fields, including dam foundation, tunnel and mining in civil engineering, building and bridge repair and foundation reinforcement in structural engineering, pavement sealing and slab jacking in construction, and related grouting operations in ocean, mining, public facilities, and geotechnical engineering.

Features

Features of HWDH75/100 PI-E High Pressure Vertical Grouting Pump

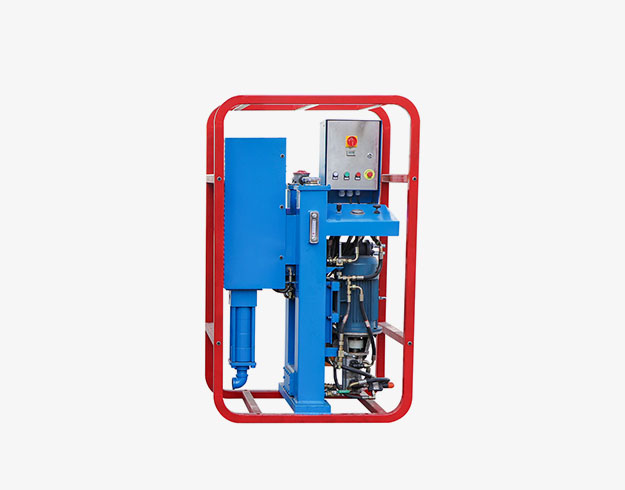

High Pressure Vertical Grouting Pump

Compact structure, light weight, easy operation, low maintenance cost

With a digital display counter: it can display at any time, and can accumulate work times

Flow and pressure can be adjusted steplessly

Equipped with an emergency unloading valve: in case of an emergency, it can be unloaded instantly

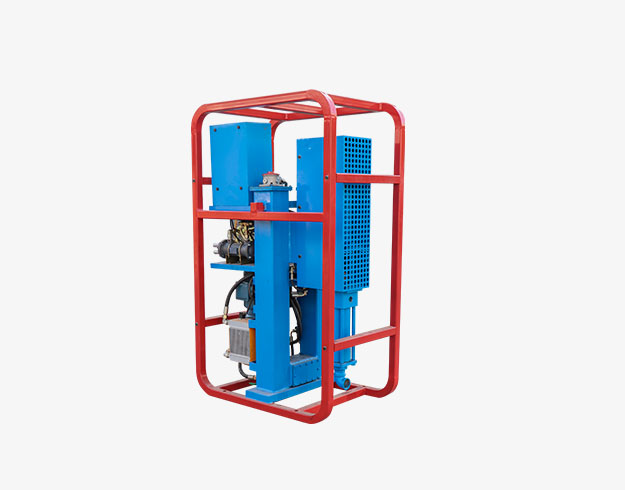

High Pressure Vertical Grouting Pump

In low pressure, there will be a flow-converging of two pumps; In high pressure, there is only one pump working. Low pressure and large flow, high pressure and low output

With a full-hydraulic shaft device, stable and reliable operation

Cooling type: water-cooling and air cooling; Suitable for hot and cold areas

Parameters

Parameters of HWDH75/100 PI-E High Pressure Vertical Grouting Pump

Item	HWDH75/100PI-E grout pump
Piston diameter	100mm
Piston stroke	150mm
Adjustable pressure ( low pressure)	0-50Bar/725psi
Adjustable flow rate( low pressure)	0-75L/min
Adjustable pressure ( high pressure)	0-100Bar/1450psi
Adjustable flow rate ( high pressure)	0-40L/min
Discharge pipe size	M27x2
Inlet pipe size	G2’’
Power Unit	7.5kW
Chassis	Skid
Weight	390Kg
Overall Dimension	1040x550x1650mm
Note: Chassis: Skid or Tyre We could also according to your demands to customize

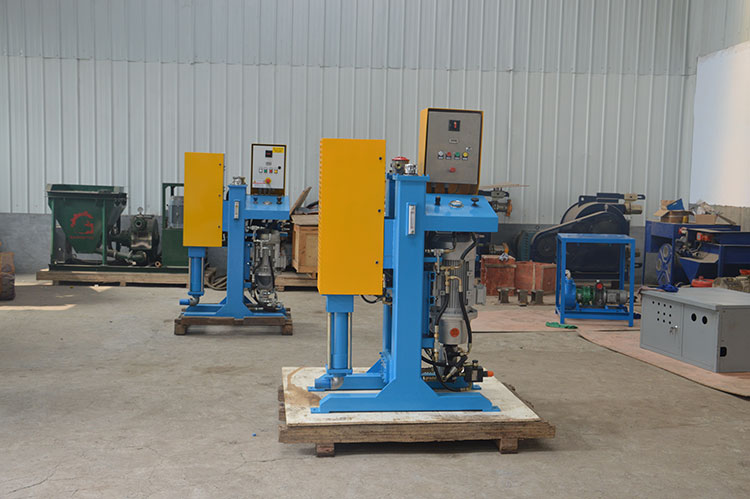

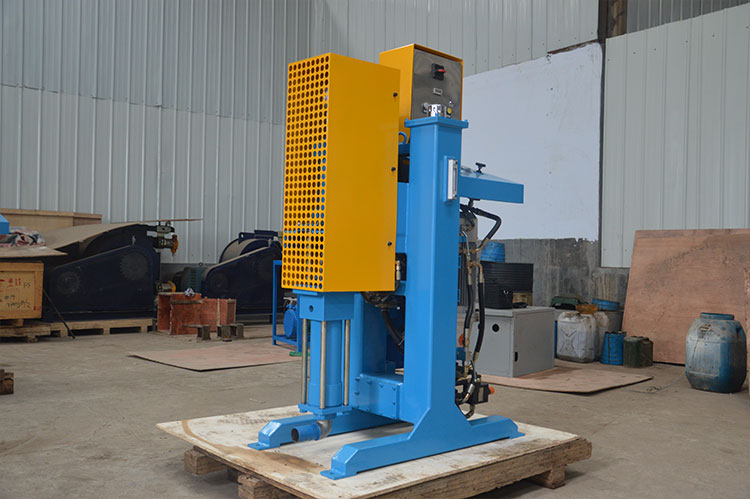

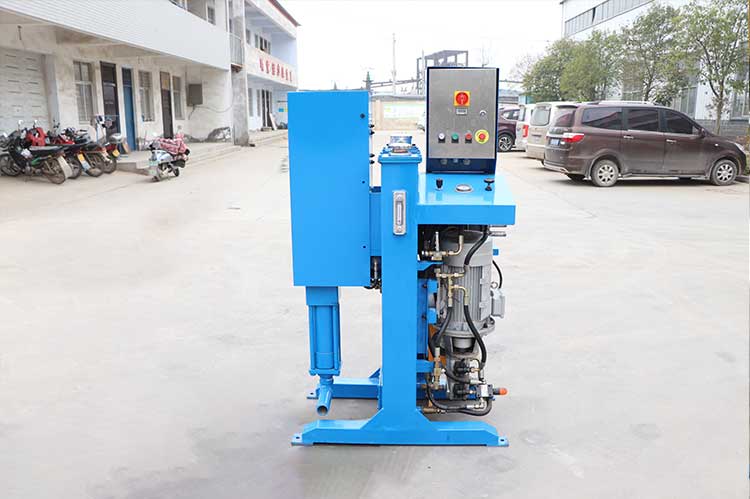

Detail Part

Detail Part of HWDH75/100 PI-E High Pressure Vertical Grouting Pump

Application

Application of HWDH75/100 PI-E High Pressure Vertical Grouting Pump

HWDH75/100 PI-E high-pressure vertical grouting pump is used in many fields, such as dam foundation and tunnel in civil engineering, building restoration and foundation reinforcement in structural engineering, pavement sealing in construction, underwater foundation in ocean, tunnel lining in mining, waterproofing of public facilities, and grouting of deep well casing in geotechnical engineering.

Industrial Hose Pump For A Paper Mill In Thailand

Industrial hose pumps are used in many key processes of paper mills, including slurry transportation, chemical addition, and wastewater treatment.

Hydroseeding Machine For Slope Protection In Australia

Hydroseeding machine can quickly and massively plant vegetation on slopes. In Australia, the use of hydroseeding machine for slope protection has proved to be a very effective method to prevent erosion.

$Refractory Gunning Machine For Repairing Of Furnaces$

Refractory Gunning Machine For Repairing Of Furnaces

The refractory gunning machine is widely used in boiler chimneys, kilns, steelmaking furnaces and other industries. Through the high-quality application of refractory materials, the gunning machine has formed a firm and lasting combination with the existing lining, ensuring that the repaired lining can withstand high temperature and harsh conditions for a long time.

Grouting Construction In Deep Foundation Pits, Tunnels, Mines, Water Conservancy Projects And Buildings

Whether in ground reinforcement or underground excavation projects, our full range of jet grouting plant is committed to providing cutting-edge technology and excellent support to ensure our customers can efficiently achieve their project goals.

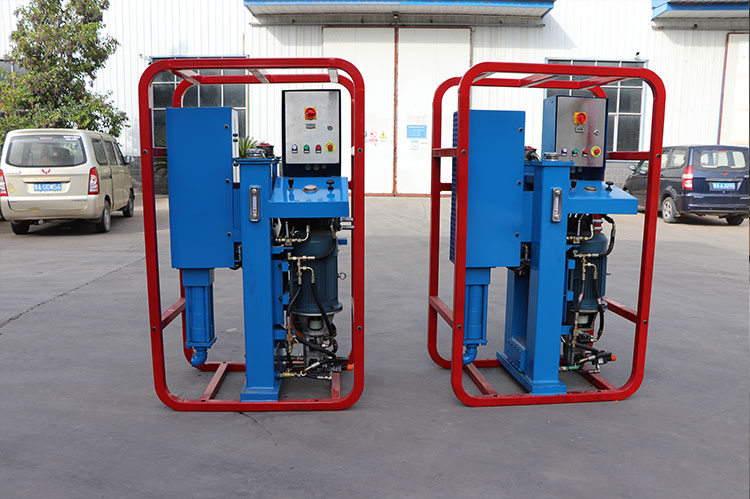

Packaging
