Self-leveling mortar mixing conveying machine

Brief Introduction

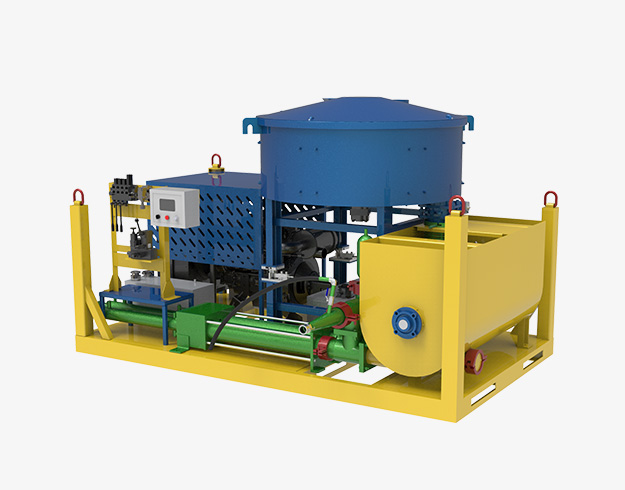

Introduction of HWSLC-10/D Self-Leveling Mortar Mixing Conveying Machine

HWSLC-10/D Self-leveling mortar mixing conveying machine features a compact design, easy mobility, and simple operation, and can be flexibly configured to suit the scale of the project. It is widely used in various building flooring projects, capable of meeting the needs of small-scale residential renovation projects as well as handling large-scale batch operations at construction sites. Powered by a robust diesel engine, it ensures efficient, stable, and environmentally friendly mortar mixing.

Features

Features of HWSLC-10/D Self-Leveling Mortar Mixing Conveying Machine

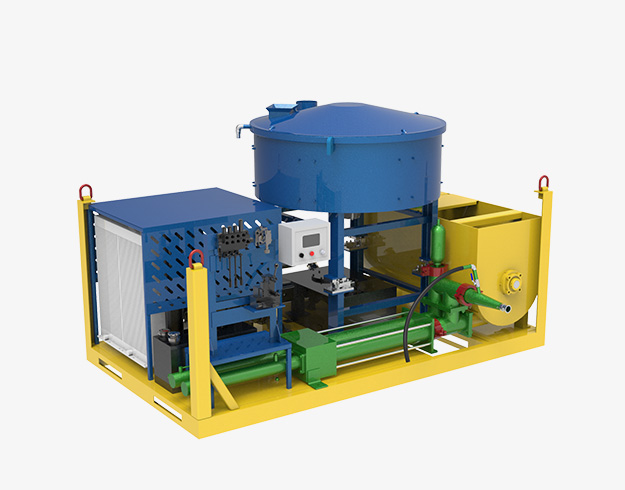

Self-Leveling Mortar Mixing Conveying Machine

Diesel-powered for flexible power supply

Compact design for convenient and efficient transport

Forced mixing ensures the quality of self-leveling mortar

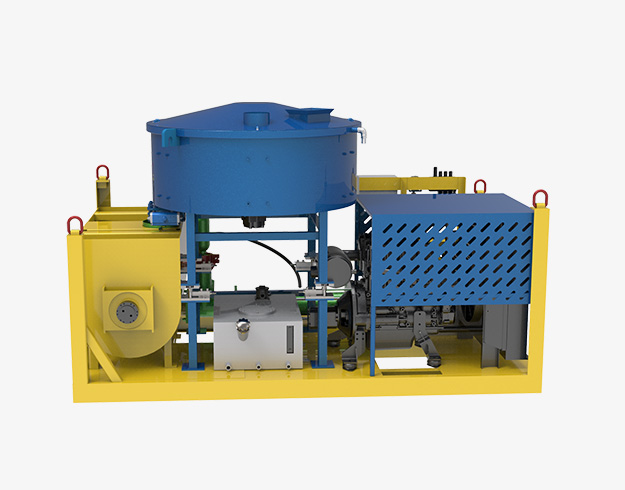

self-leveling mortar mixing station

Single-operator control for effortless and efficient operation throughout the process

Enclosed operation for an environmentally friendly, clean, and low-consumption workflow

Compatible with multiple materials, suitable for all types of self-leveling mortar

Parameters

Parameters of HWSLC-10/D Self-Leveling Mortar Mixing Conveying Machine

self-leveling mortar mixing station size

Name		Data
Model		HWSLC-10/D
Diesel engine	Power	52-54KW
Forced Mixer	Capacity	800L
Forced Mixer	Speed	70rpm
Agitator	Capacity	700L
Agitator	Speed	35rpm
Grout Pump	Cylinder Bore Diameter	120mm
	Stroke	850mm
	Flow@Pressure	11m3/h@7Mpa
	Outlet Diameter	DN38
Dimension		3050×1750×1862mm
Weight		2900Kg
We can also customize products according to your needs.

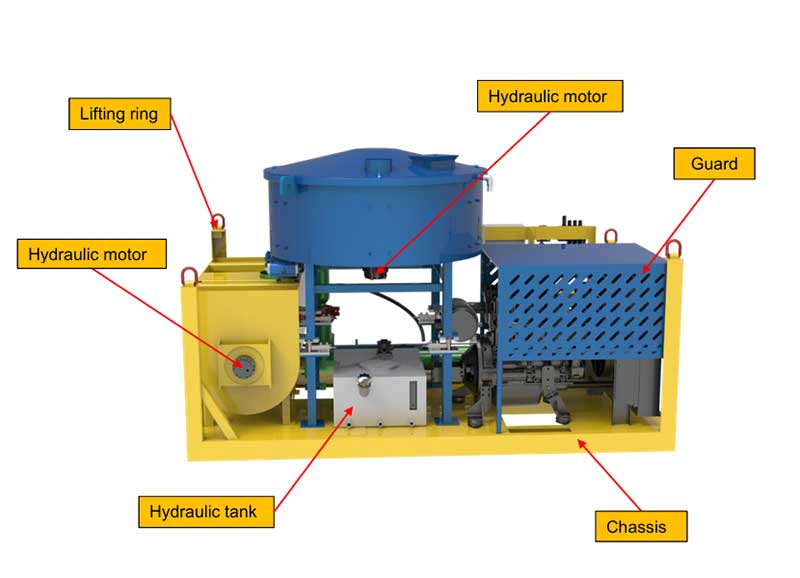

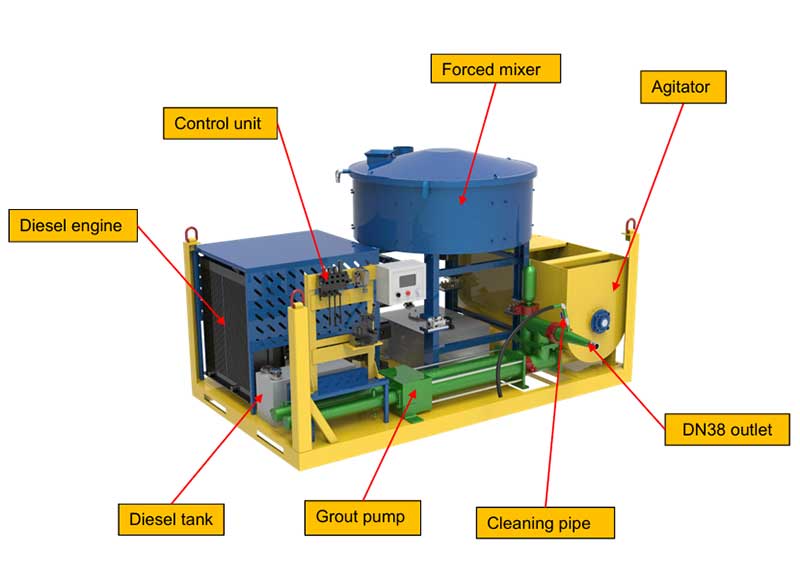

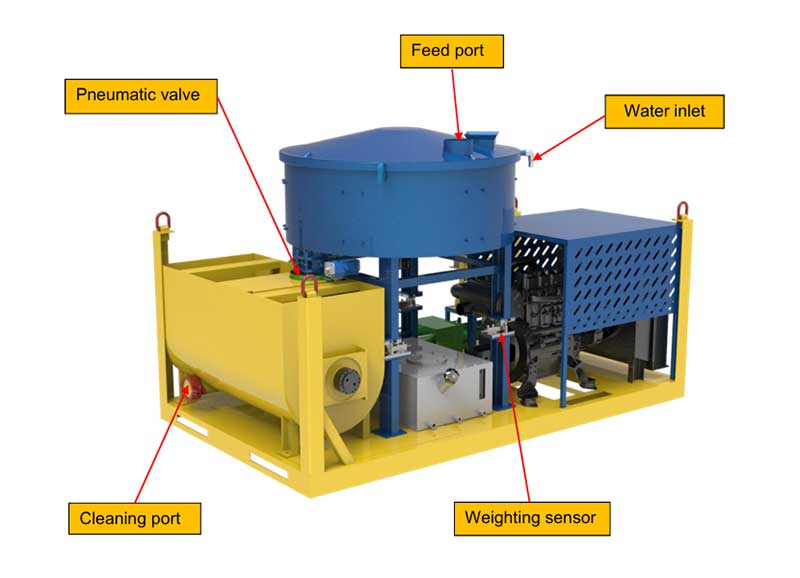

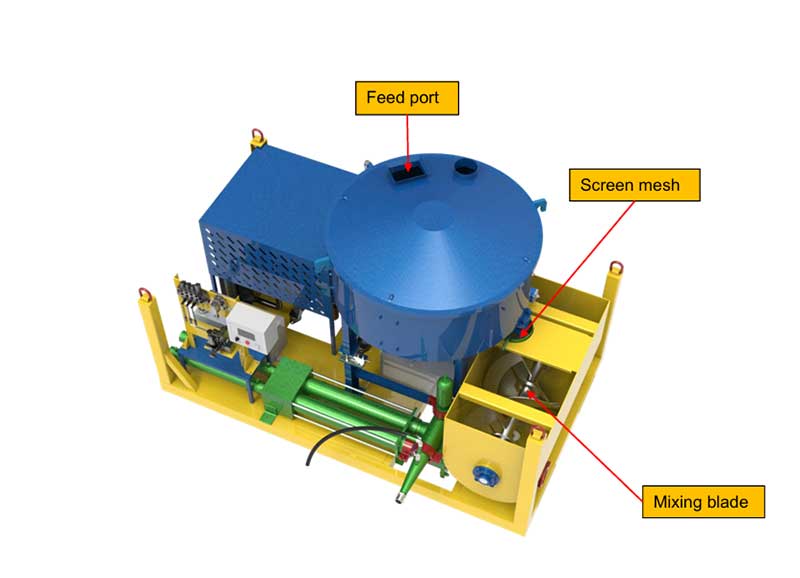

Detail Part

Detail Part of HWSLC-10/D Self-Leveling Mortar Mixing Conveying Machine

Application

Application of HWSLC-10/D Self-Leveling Mortar Mixing Conveying Machine

HWSLC-10/D Self-leveling mortar mixing conveying machine is primarily used for precision floor leveling. They efficiently handle the continuous mixing and delivery of cement-based and gypsum-based self-leveling mortars, as well as underfloor heating backfill mortars. The self-leveling mortar mixing station is widely used in interior floor finishing, underfloor heating projects, industrial flooring, commercial spaces, and various construction scenarios where high floor flatness is required. This equipment ensures uniform mixing and precise proportions, effectively guaranteeing the flowability of the mortar and construction quality while minimizing issues such as hollow spots and cracking. Additionally, it can be operated by a single person, is environmentally friendly and dust-free, and is suitable for fast, stable operation at various construction sites.
